Engine displacement
750
2
Model
DORSODURO
3
Year
2015
4
Trim
Dorsoduro ABS
5
Parts Catalog
Gear box
6
Parts Diagram
Parts Catalog
Fuel tank
by
Air box
Gear box
4
3
2
1
20
19
19
19
18
17
16
15
14
13
12
11
10
9
8
5
6
7
26
25
24
23
23
23
23
20
21
22
1
Primary gear shaft Z=14
849293
£431,11 Unit Price incl. VAT
2
2nd pinion gear Z=17
849295
£41,77 Unit Price incl. VAT
3
3rd-4th pinion gear Z=20/22
849296
£103,85 Unit Price incl. VAT
4
5th pinion gear Z=23
849297
£76,70 Unit Price incl. VAT
5
6th pinion gear Z=24
849298
£76,70 Unit Price incl. VAT
6
Clearance washer
849424
£3,05 Unit Price incl. VAT
7
Snap ring
849426
£4,51 Unit Price incl. VAT
8
Clearance washer
974163
£23,60 Unit Price incl. VAT
9
Clearance washer
849396
£3,25 Unit Price incl. VAT
10
Snap ring
974165
£2,95 Unit Price incl. VAT
11
Gearbox driven shaft
849301
£238,48 Unit Price incl. VAT
12
1st wheel gear Z=36
849312
£121,57 Unit Price incl. VAT
13
2nd wheel gear Z=32
849303
£55,80 Unit Price incl. VAT
14
3rd wheel gear Z=30
849304
£56,83 Unit Price incl. VAT
15
4th wheel gear Z=28
849305
£55,80 Unit Price incl. VAT
16
5th wheel gear Z=26
849306
£203,08 Unit Price incl. VAT
17
6th wheel gear Z=25
849307
£135,37 Unit Price incl. VAT
18
Clearance washer
849309
£3,13 Unit Price incl. VAT
19
Snap ring
849311
£3,29 Unit Price incl. VAT
20
Clearance washer
849310
£6,13 Unit Price incl. VAT
21
Clearance washer
974167
£5,83 Unit Price incl. VAT
22
Clearance washer
974166
£5,83 Unit Price incl. VAT
23
Moveable bush
849308
£31,02 Unit Price incl. VAT
24
Moveable bush
974162
£34,78 Unit Price incl. VAT
25
Plug M10x1,25
842507
£1,99 Unit Price incl. VAT
26
Gear box assy
82935R
£1 171,91 Unit Price incl. VAT

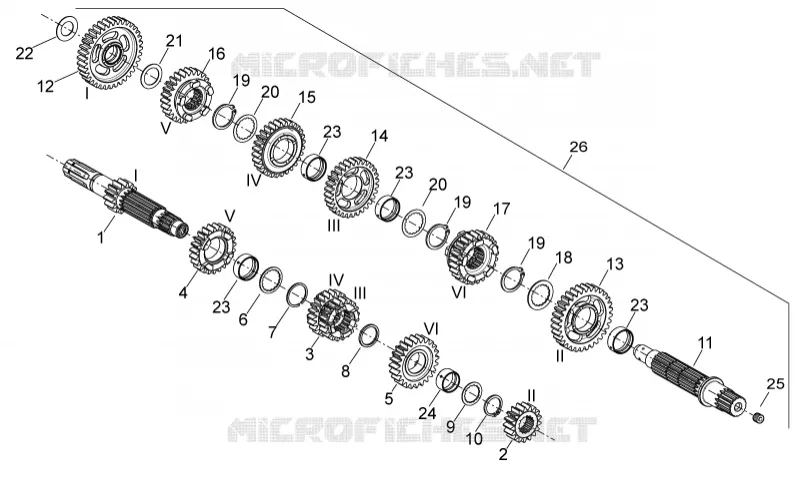

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
