1
Engine displacement
750
2
Model
DORSODURO
3
Year
2016
4
Trim
Dorsoduro ABS
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Exhaust unit
by
Front brake caliper
Front wheel
14
13
12
11
10
11
9
8
8
7
6
5
5
4
4
3
2
1
1
Front wheel, black
AP8128228
£499,86 Unit Price incl. VAT
2
Tubeless tyre valve
AP8101744
£14,65 Unit Price incl. VAT
3
Internal spacer
AP8128169
£31,08 Unit Price incl. VAT
4
Ball bearing 25x47x12
AP8125777
£10,52 Unit Price incl. VAT
5
Gasket ring 30x47x7
AP8125773
£2,63 Unit Price incl. VAT
6
Circlip
AP8125779
£15,16 Unit Price incl. VAT
7
Front RH whe.ou.spacer
AP8125728
£15,91 Unit Price incl. VAT
8
Front brake disc
856774
Not Available
9
Washer 25,2x36x1
AP8152323
£8,57 Unit Price incl. VAT
10
Wheel spindle nut
AP8152335
£10,94 Unit Price incl. VAT
11
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
12
Front wheel spindle
AP8125827
Not Available
13
Front tyre 120/70 ZR 17"
85156R
£295,66 Unit Price incl. VAT
14
Phonic wheel
AP8128189
£104,45 Unit Price incl. VAT

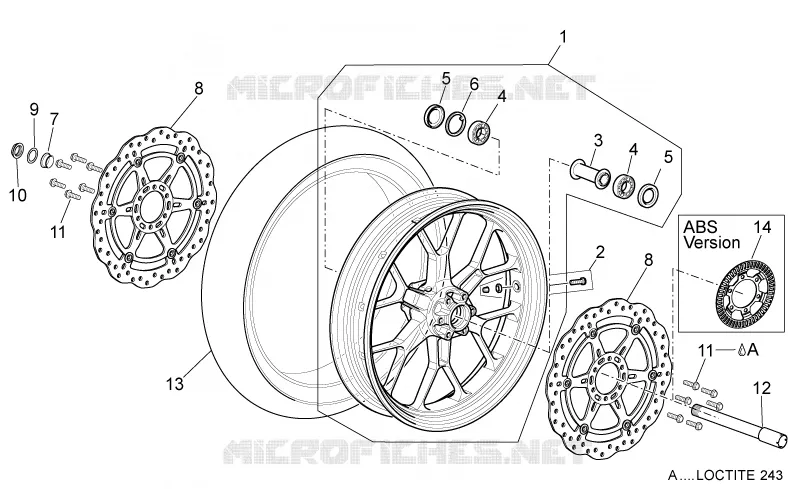

Find the detailed Front wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
