1
Engine displacement
750
2
Model
DORSODURO
3
Year
2016
4
Trim
Dorsoduro ABS
5
Parts Catalog
Foot rests
6
Parts Diagram
Parts Catalog
Rear body III
by
Rear wheel
Foot rests
26
25
25
24
23
23
22
22
21
21
20
20
20
20
19
19
18
18
17
16
15
14
14
14
14
14
14
13
13
13
13
13
13
12
12
11
11
10
9
8
7
6
5
4
4
3
3
2
1
1
RH foot rest support
856779
£290,83 Unit Price incl. VAT
1
RH foot rest support
B046059
Not Available
2
LH footrest support
856780
£229,13 Unit Price incl. VAT
2
LH footrest support
B046060
Not Available
3
Pin
AP9100197
£7,49 Unit Price incl. VAT
4
Footrest plate
859921
£8,59 Unit Price incl. VAT
5
RH footrest
896664
£59,98 Unit Price incl. VAT
6
LH footrest
896665
£59,98 Unit Price incl. VAT
7
Rear footrest, RH
AP8146405
Not Available
8
Rear footrest, LH
AP8146406
Not Available
9
Spring RH
AP9100196
£2,45 Unit Price incl. VAT
10
Spring LH
AP9100195
£2,45 Unit Price incl. VAT
11
Split pin
AP8101606
Not Available
12
Washer 10,5X18X2*
AP8152176
£3,65 Unit Price incl. VAT
13
Hex socket screw M8x35
AP8150236
£1,27 Unit Price incl. VAT
14
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
14
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
15
Cover
AP8102600
£0,61 Unit Price incl. VAT
16
RH footrest support
856783
Not Available
17
LH footrest support
856784
Not Available
18
Footrest pin
AP8121566
£11,32 Unit Price incl. VAT
19
Stop ring
AP8152409
£1,38 Unit Price incl. VAT
20
Footrest plate
AP8134451
£5,77 Unit Price incl. VAT
21
Coil compress. spring
AP8121133
£3,22 Unit Price incl. VAT
22
Ball D6,35
AP8101861
£0,36 Unit Price incl. VAT
23
Screw w/ flange
AP8152289
£1,27 Unit Price incl. VAT
24
LH protection
860987
£41,76 Unit Price incl. VAT
25
Hex socket screw M8x12
AP8152055
£13,28 Unit Price incl. VAT
26
RH protection
890164
£37,30 Unit Price incl. VAT

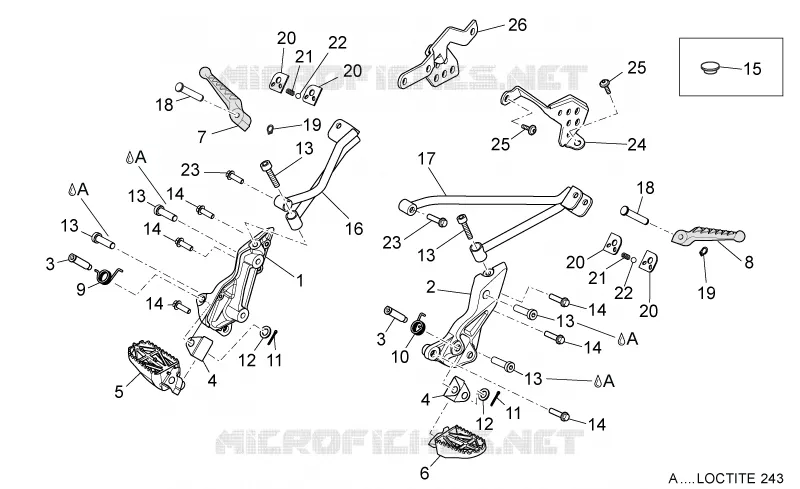

Find the detailed Foot rests APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
