Engine displacement
750
2
Model
DORSODURO
3
Year
2016
4
Trim
Dorsoduro ABS
5
Parts Catalog
Engine
6
Parts Diagram
Parts Catalog
USA decals
by
Front lights
Engine
26
25
24
23
22
21
20
19
18
17
16
15
14
14
13
12
11
11
10
10
9
8
8
7
7
6
5
4
3
2
1
1
Engine
CM1592105
Not Available
2
Pinion Z=16
974556
£99,59 Unit Price incl. VAT
3
Pinion mounting kit
2R000246
£12,78 Unit Price incl. VAT
4
Hex socket screw M8x12
AP8152055
£13,28 Unit Price incl. VAT
5
Cover
AP8102600
£0,61 Unit Price incl. VAT
6
Sprocket cover
856069
£15,31 Unit Price incl. VAT
7
T bush
AP8121811
£1,27 Unit Price incl. VAT
8
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
9
Plate
856079
£15,16 Unit Price incl. VAT
10
Gear lever
852480
£58,36 Unit Price incl. VAT
11
Gearbox linkage rod assy
859976
£59,83 Unit Price incl. VAT
12
RH ball joint M6
AP8210007
£15,91 Unit Price incl. VAT
13
Left ball joint M6
AP8110053
£16,18 Unit Price incl. VAT
14
Nut
AP8152138
£1,88 Unit Price incl. VAT
15
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
16
Gear lever
860402
£77,02 Unit Price incl. VAT
17
Brake lever pin
AP8121221
£22,68 Unit Price incl. VAT
18
Lever rubber
AP8120912
£3,68 Unit Price incl. VAT
19
Circlip d9
AP8150462
£1,39 Unit Price incl. VAT
20
Hex socket screw M6x16
AP8150137
£1,27 Unit Price incl. VAT
21
Hose clamp D 11,9
AP8201358
£0,60 Unit Price incl. VAT
22
Lever pin
884033
Not Available
23
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
24
O-ring 11,11x1,78
AP8144007
£1,39 Unit Price incl. VAT
25
Cable-guide
AP8121889
£5,14 Unit Price incl. VAT
26
Cable-guide
AP8221114
£17,98 Unit Price incl. VAT

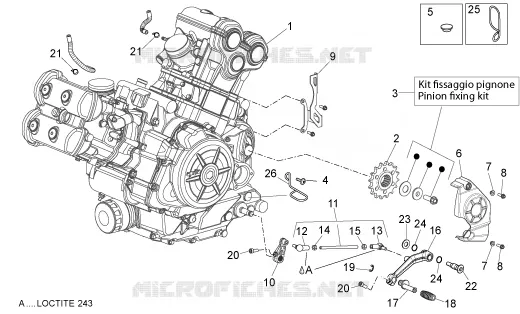

Find the detailed Engine APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
