Engine displacement
750
2
Model
DORSODURO
3
Year
2016
4
Trim
Dorsoduro ABS
5
Parts Catalog
Electrical system II
6
Parts Diagram
Parts Catalog
Crankcases II
by
Dashboard
Electrical system II
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
8
7
6
5
4
3
2
1
1
ECU
641226
£1 067,59 Unit Price incl. VAT
2
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
3
Battery (Yuasa) 12V-10Ah
583158
£132,76 Unit Price incl. VAT
4
Earth cable
859967
£23,64 Unit Price incl. VAT
5
Injection relay
AP8124869
Not Available
6
Relay rubber
AP8220546
£3,74 Unit Price incl. VAT
7
Fall sensor
584509
£100,30 Unit Price incl. VAT
8
Rubber sensor support
AP8144046
Not Available
9
Horn
854830
£68,33 Unit Price incl. VAT
10
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
11
Fuse 30A
496404
Not Available
12
Reed fuse 10A
292507
£2,26 Unit Price incl. VAT
13
Fuse 15A
AP8127345
Not Available
14
Fuse
AP8176100
£2,02 Unit Price incl. VAT
15
Fuse 3A
AP8127346
£3,23 Unit Price incl. VAT
16
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
17
Spring washer 6,4x11x0,5*
AP8150429
Not Available
18
Hose clamp 155x2
AP8102386
£0,18 Unit Price incl. VAT
19
Black hose 98x2*
AP8120422
£1,49 Unit Price incl. VAT
20
Main wiring harness
896741
Not Available
20
Main wiring harness
896742
Not Available
21
Relay 12V-150A
AP8112927
Not Available
22
Cap
581061
£7,70 Unit Price incl. VAT
23
Nut M6
AP8150026
£0,96 Unit Price incl. VAT
24
Spring washer 6,4x11x0,5*
AP8150429
Not Available
25
Elastic
AP8120177
£6,95 Unit Price incl. VAT
26
Battery adapter
654139
£12,83 Unit Price incl. VAT
27
Injection relay 12V-40W
895481
£19,52 Unit Price incl. VAT

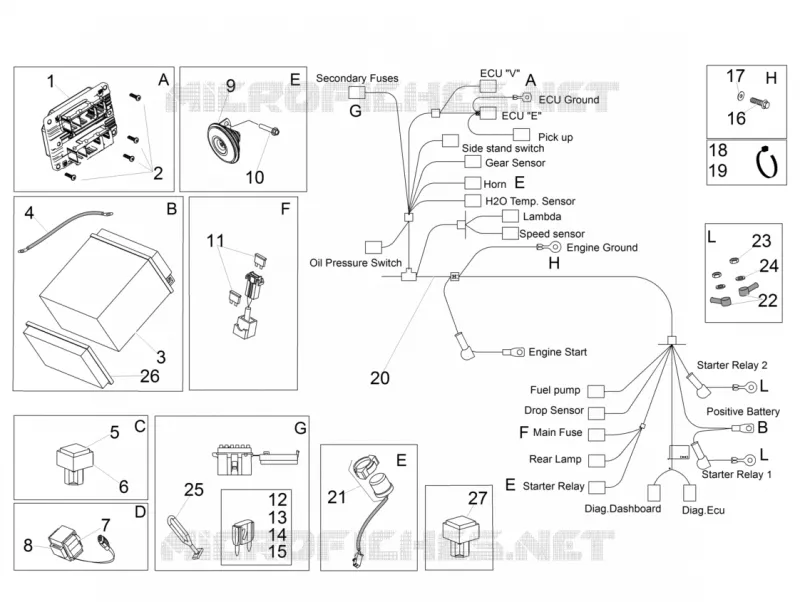

Find the detailed Electrical system II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
