1
Engine displacement
750
2
Model
DORSODURO
3
Year
2016
4
Trim
Dorsoduro ABS
5
Parts Catalog
Cylinder head - valves
6
Parts Diagram
Parts Catalog
Clutch I
by
Throttle body
Cylinder head - valves
4
3
3
2
2
1
12
11
11
10
9
9
8
8
8
8
7
7
7
6
6
6
5
5
5
4
4
25
24
23
23
22
22
21
20
19
18
18
18
18
18
18
17
17
16
16
16
15
15
14
13
13
1
Cylinder head assy.
83038R
£1 485,77 Unit Price incl. VAT
2
Intake valve
846923
£97,90 Unit Price incl. VAT
3
Exhaust valve
873459
£163,20 Unit Price incl. VAT
4
Ext. valve spring
873005
£18,47 Unit Price incl. VAT
5
Int. valve spring
873006
£9,38 Unit Price incl. VAT
6
Upper cup
874933
£13,64 Unit Price incl. VAT
7
Lower cup
846925
£8,78 Unit Price incl. VAT
8
Exhaust pipe stud bolt
B017636
Not Available
9
Stud bolt
872807
£5,36 Unit Price incl. VAT
10
Water outlet union
B013744
Not Available
11
Screw w/ flange
855799
£5,14 Unit Price incl. VAT
12
Joint
873396
Not Available
13
Gasket
878705
£3,91 Unit Price incl. VAT
14
Flanged nut
872434
£1,21 Unit Price incl. VAT
15
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
16
Valve gasket ring
436438
£11,03 Unit Price incl. VAT
17
Screw w/ flange
872433
£1,21 Unit Price incl. VAT
18
Nut M10x1,25 6H
833520
£0,76 Unit Price incl. VAT
19
Temperature gauge
640485
Not Available
20
Plug M6x10
842360
£2,20 Unit Price incl. VAT
21
Plug M12x1,5
411311
Not Available
22
Screw w/ flange
872424
£2,39 Unit Price incl. VAT
23
Joint
872948
£63,76 Unit Price incl. VAT
24
Cylinder head assy.
875413
£811,38 Unit Price incl. VAT
25
Plug M10x1,25
842507
£1,99 Unit Price incl. VAT

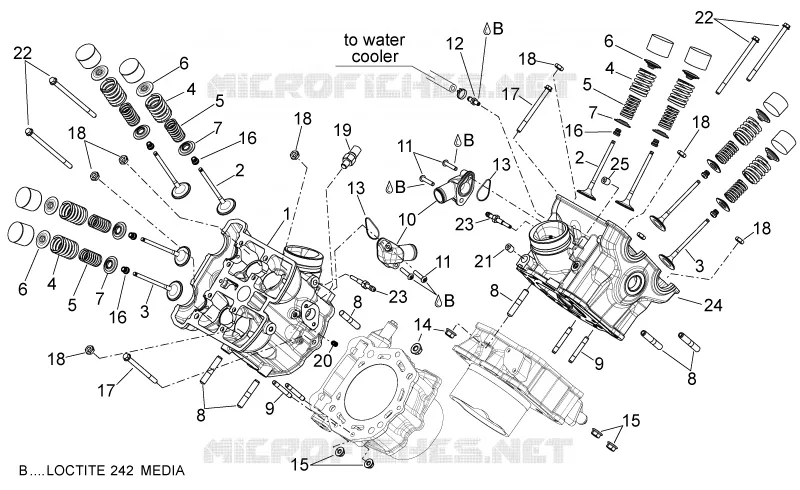

Find the detailed Cylinder head - valves APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
