1
Engine displacement
750
2
Model
DORSODURO
3
Year
2016
4
Trim
Dorsoduro ABS
5
Parts Catalog
Crankcases I
6
Parts Diagram
Parts Catalog
Clutch II
by
Steering
Crankcases I
15
15
15
14
13
12
11
10
10
9
9
9
8
8
7
6
5
4
3
2
23
22
21
21
20
20
19
19
19
18
18
17
17
16
16
1
1
Central crank-case set cat1A
B0151515001
Not Available
1
Central crank-case set cat1B
B0151515002
Not Available
2
Oil filter union
829122
£15,94 Unit Price incl. VAT
3
Ball bearing 25x62x17
848651
£38,11 Unit Price incl. VAT
4
Ball bearing 30x62x23,8
848475
£108,16 Unit Price incl. VAT
5
Ball bearing 25x42x9
872033
£31,86 Unit Price incl. VAT
6
Ball bearing 20x47x14
848650
Not Available
7
Roller cage 30x37x12
974129
Not Available
8
Roller cage
122671
£6,23 Unit Price incl. VAT
9
Washer
873928
£10,54 Unit Price incl. VAT
9
Washer
873905
£10,52 Unit Price incl. VAT
10
Screw M6x12
AP9150394
£1,21 Unit Price incl. VAT
11
Gasket ring
848474
£27,85 Unit Price incl. VAT
12
Gasket ring 8x16x7
825577
£6,19 Unit Price incl. VAT
13
Gasket ring 14x22x5
974112
Not Available
14
Gasket ring 20x30x5
82897R
£12,89 Unit Price incl. VAT
15
Plug
430136
£1,76 Unit Price incl. VAT
16
Oil sprayer pipe
847537
£31,64 Unit Price incl. VAT
17
Gasket ring
487073
£1,21 Unit Price incl. VAT
18
Hex socket screw M5x16
292889
Not Available
19
Stud bolt M10X1.25X166
1A000423
Not Available
20
Locating dowel (D.15,8)
974051
£8,20 Unit Price incl. VAT
21
Circlip
006642
Not Available
22
Bushing,red cat A
8783940001
£75,44 Unit Price incl. VAT
22
Bushing,yellow cat C
8783940003
£70,90 Unit Price incl. VAT
22
Bushing,blue cat B
8783940002
£75,44 Unit Price incl. VAT
22
Bearing half-shell catE verde
9745050004
£67,08 Unit Price incl. VAT
23
Bearing half-shell catA rosso
8793650001
£36,29 Unit Price incl. VAT
23
Bearing half-shell catB blu
8793650002
£36,29 Unit Price incl. VAT
23
Bearing half-shell catC giallo
8793650003
£34,12 Unit Price incl. VAT
23
Bearing half-shell catE verde
8793650004
£36,29 Unit Price incl. VAT

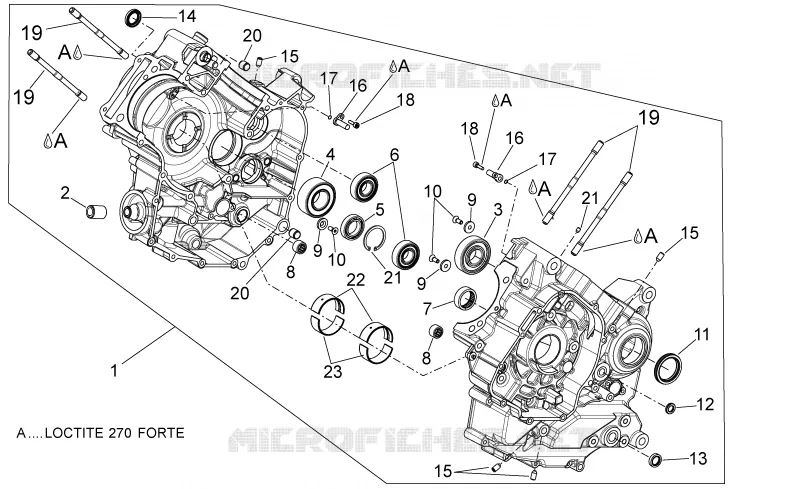

Find the detailed Crankcases I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
