1
Engine displacement
1000
2
Model
RSV4
3
Year
2017
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Front mudguard-Pillar
6
Parts Diagram
Parts Catalog
Front wheel
by
Front lights
Front mudguard-Pillar
11
4
3
2
1
24
24
24
23
22
21
21
21
20
20
19
18
17
17
16
15
14
13
12
12
12
12
11
11
10
10
10
9
8
7
6
6
6
5
4
5
27
26
25
25
25
1
Photoengraved front mudguard
2B003404
£116,21 Unit Price incl. VAT
2
Black right lower fairing
2H001589000XN2
£346,00 Unit Price incl. VAT
3
Pillar
858827
£13,32 Unit Price incl. VAT
4
Black left lower fairing
2H001590000XN2
Not Available
5
Hex socket screw M5x9
AP8150500
£2,18 Unit Price incl. VAT
6
Washer 8,5x15x0,8
AP8150376
£1,76 Unit Price incl. VAT
7
RH clamp
895909
£34,44 Unit Price incl. VAT
8
Hex socket screw
895915
£2,48 Unit Price incl. VAT
9
LH clamp
2B001812
£41,42 Unit Price incl. VAT
10
Hex socket screw Black M5x12
896174
£2,48 Unit Price incl. VAT
11
Front dust cover ring
AP8120622
£1,36 Unit Price incl. VAT
12
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
13
Hex socket screw
895915
£2,48 Unit Price incl. VAT
14
Hex socket screw
581957
£0,30 Unit Price incl. VAT
15
Plastic washer
895916
£2,48 Unit Price incl. VAT
16
Fairlead
B046190
£4,45 Unit Price incl. VAT
17
Washer 4,3X9X0,8
AP8150158
£1,27 Unit Price incl. VAT
18
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
19
Black hose D8
AP8101890
£2,80 Unit Price incl. VAT
20
Rivet, male
AP8144563
£3,10 Unit Price incl. VAT
21
Rivet, female
AP8144616
£3,20 Unit Price incl. VAT
22
LH baffle
2B001548
£11,48 Unit Price incl. VAT
23
RH baffle
2B001547
£11,48 Unit Price incl. VAT
24
Rubber spacer
AP8102504
£2,52 Unit Price incl. VAT
25
Washer for shafts D5
AP8150450
£2,20 Unit Price incl. VAT
26
Reflector, amber
AP8124719
£16,44 Unit Price incl. VAT
27
Nut M4
AP8150204
£1,88 Unit Price incl. VAT

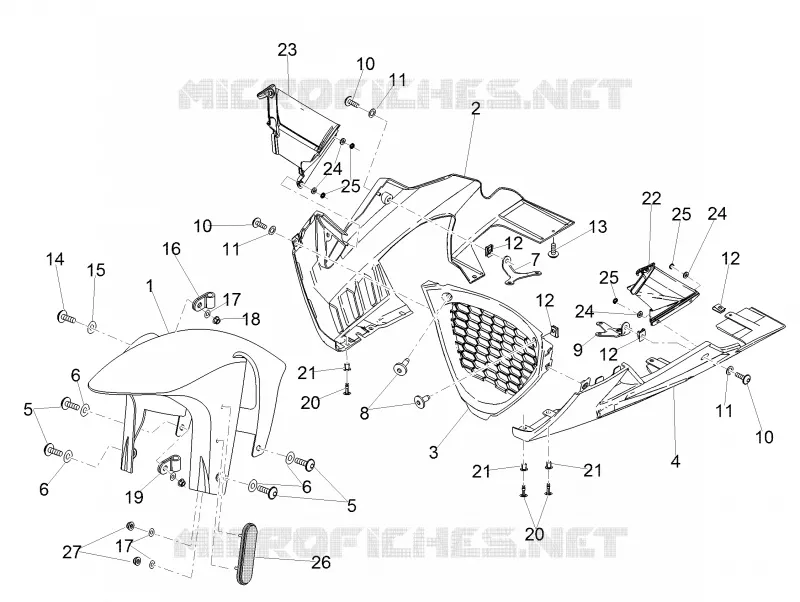

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
