1
Engine displacement
1000
2
Model
RSV4
3
Year
2017
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog

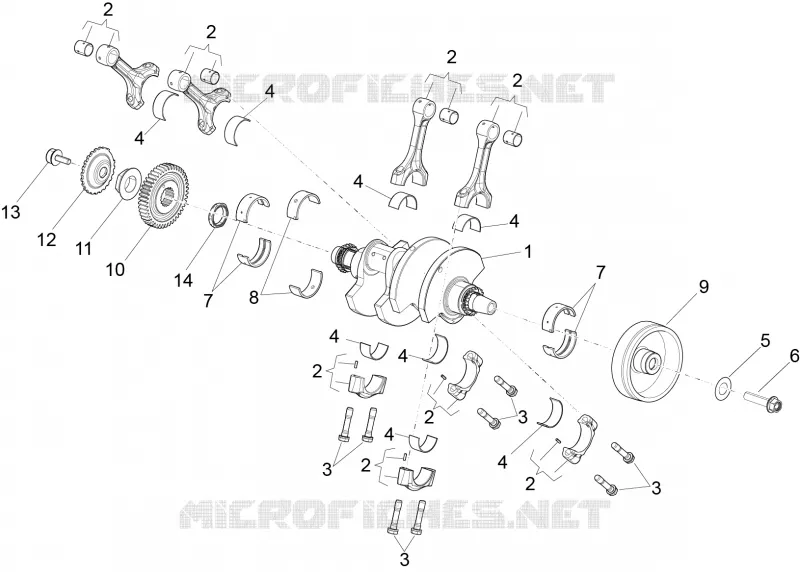

Drive shaft
6
Parts Diagram
Parts Catalog
Plate set / Various
by
Rear cylinder timing system
Drive shaft
2
2
2
2
2
1
2
2
2
12
11
10
9
9
8
7
7
6
5
13
14
4
4
4
4
4
3
3
3
3
4
4
1
Missing description
2A000798BB
£1 227,79 Unit Price incl. VAT
1
Missing description
2A000798DD
£1 227,79 Unit Price incl. VAT
1
Missing description
2A000798CC
£1 227,79 Unit Price incl. VAT
1
Missing description
2A000798AA
£1 227,79 Unit Price incl. VAT
1
Missing description
2A000798EE
£1 227,79 Unit Price incl. VAT
2
Connecting rod, selection class "B"
2A000622BB
Not Available
2
Connecting rod, selection class "D"
2A000622DD
Not Available
2
Missing description
2A000622EE
Not Available
2
Missing description
2A000622AA
Not Available
2
Connecting rod, selection class "C"
2A000622CC
Not Available
3
Connecting rod screw
B045844
Not Available
4
Connecting rod half-bearing, green
2A0008370V
Not Available
4
Connecting rod half-bearing, blue
2A0008370B
Not Available
4
Connecting rod half-bearing, yellow
2A0008370G
Not Available
5
Washer 12x26.5x3
897478
£9,68 Unit Price incl. VAT
6
Screw w/ flange M12X1,25X50
857206
£25,60 Unit Price incl. VAT
7
Black central bushing half case
8571320N
£45,00 Unit Price incl. VAT
7
Bearing half-shell, green
8571320V
£45,00 Unit Price incl. VAT
7
Bushing half-shell, yellow
8571320G
£45,00 Unit Price incl. VAT
8
Green central bushing half case
8571300V
£30,01 Unit Price incl. VAT
8
Bushing half-shell, yellow
8571300G
£30,01 Unit Price incl. VAT
8
Black bushing half shell
8571300N
£30,01 Unit Price incl. VAT
9
Cdi magneto assy
2D000049
Not Available
10
Primary drive gear
2A000535
£323,89 Unit Price incl. VAT
11
Ring nut
B043204
£16,76 Unit Price incl. VAT
12
Phonic wheel
857118
£54,54 Unit Price incl. VAT
13
Special screw M8x24
857077
£42,07 Unit Price incl. VAT
14
Sprocket spacer
897474
£15,91 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
