1
Engine displacement
1000
2
Model
RSV4
3
Year
2017
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
ABS Brake system
6
Parts Diagram
Parts Catalog
Instruments
by
Handlebar - Controls

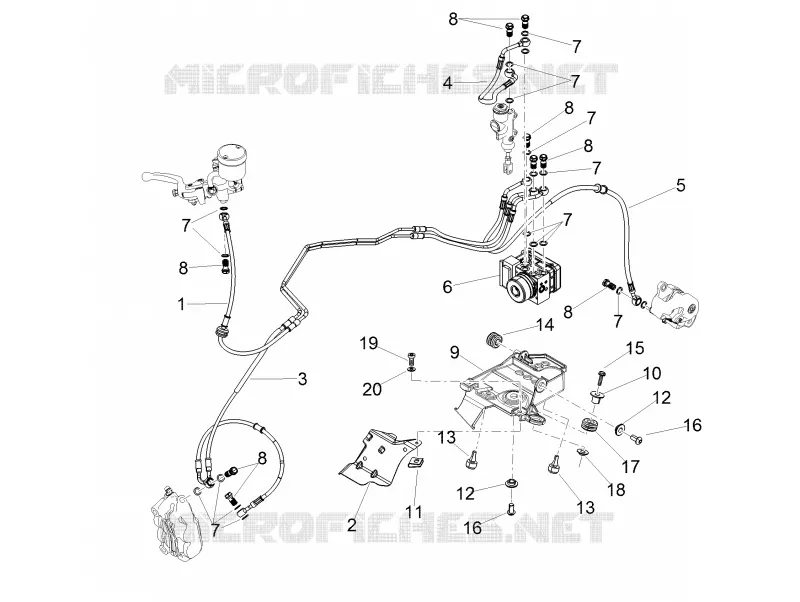

ABS Brake system
20
19
18
16
16
17
15
14
1
2
3
4
5
6
7
7
7
7
7
7
7
7
8
8
8
8
8
8
9
10
11
12
12
13
13
1
Front brake pipe pump-Hecu ABS
2B003507
£317,10 Unit Price incl. VAT
2
Protection
B045095
£25,54 Unit Price incl. VAT
3
Front brake pipe Hecu ABS-clamp
2B002997
£274,15 Unit Price incl. VAT
4
Rear brake pipe pump-Hecu ABS
2B003508
£114,26 Unit Price incl. VAT
5
Brake calliper-HECU pipe
2B003509
£143,94 Unit Price incl. VAT
6
ABS electrohydraulic unit, prefilled
2D000265
£1 966,42 Unit Price incl. VAT
7
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
8
Oil pipe screw
2B001983
£6,59 Unit Price incl. VAT
9
ABS control unit support
B044551
£13,72 Unit Price incl. VAT
10
T bush
AP8221023
£1,64 Unit Price incl. VAT
11
Clip M4
AP8102381
£4,02 Unit Price incl. VAT
12
Bush d.10-h.3,5
AP9100053
£1,76 Unit Price incl. VAT
13
Rubber spacer
AP8706087
£2,95 Unit Price incl. VAT
14
Rubber spacer *
AP8120223
£2,74 Unit Price incl. VAT
15
Screw w/ flange M5x25
AP8152275
Not Available
16
Hex socket screw M6x12
AP8152186
£0,52 Unit Price incl. VAT
17
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
18
Bush
AP8121032
£3,88 Unit Price incl. VAT
19
Hex socket screw M4x10
AP8152043
£1,88 Unit Price incl. VAT
20
Washer 4,3x12x1
AP8150011
£1,88 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
