1
Engine displacement
1000
2
Model
RSV4
3
Year
2017
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog

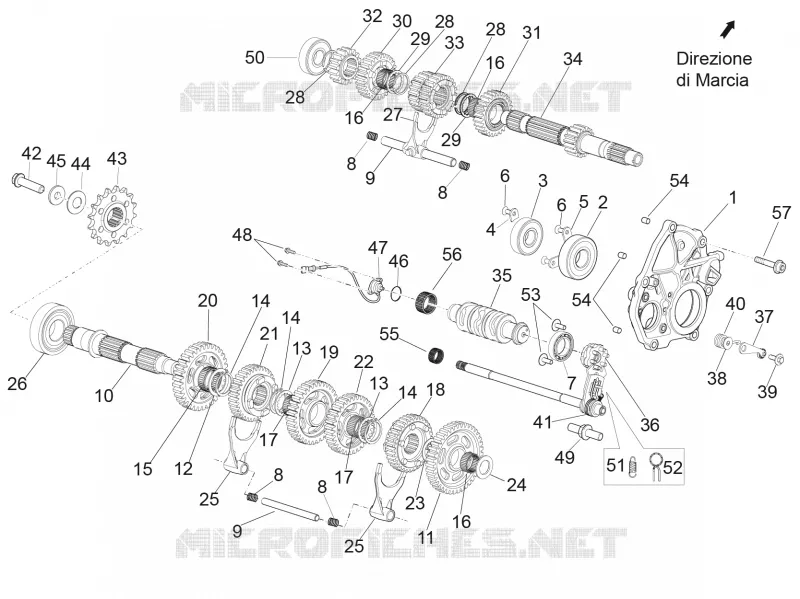

Gear box - Gear assembly
6
Parts Diagram
Parts Catalog
Fuel tank
by
Side fairing
Gear box - Gear assembly
27
26
25
25
24
23
22
21
20
19
18
17
17
16
16
16
15
14
14
14
13
13
12
11
10
9
53
52
51
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
29
28
28
28
57
56
55
54
54
50
49
9
8
8
8
8
7
6
6
5
4
3
2
1
1
Trasmission support
2A000436
£114,37 Unit Price incl. VAT
2
Ball bearing 25x62x17
898634
£15,42 Unit Price incl. VAT
3
Ball bearing 20x52x15
898635
£14,38 Unit Price incl. VAT
4
Check bearing plate
AP9150145
£41,72 Unit Price incl. VAT
5
Check bearing plate
857271
£13,02 Unit Price incl. VAT
6
screw M6x16
AP8152166
£4,01 Unit Price incl. VAT
7
Ball bearing 25x42x9
857250
£11,84 Unit Price incl. VAT
8
Spring
857175
£8,02 Unit Price incl. VAT
9
Fork shaft
2A000440
£33,54 Unit Price incl. VAT
10
Driven shaft
857236
£326,44 Unit Price incl. VAT
11
1st wheel gear Z=39
2A000879
£241,78 Unit Price incl. VAT
12
Washer 30x40x1,5
857308
£15,91 Unit Price incl. VAT
13
Clearance washer
857247
£20,42 Unit Price incl. VAT
14
Circlip D30
857248
£5,14 Unit Price incl. VAT
15
Roller cage 30x35x13
857309
£92,64 Unit Price incl. VAT
16
Roller cage 24x28x13
857233
£87,47 Unit Price incl. VAT
17
Roller cage 26x30x15,6
857244
£87,47 Unit Price incl. VAT
18
5th wheel gear
2A000883
£229,64 Unit Price incl. VAT
19
3rd gear on the sec. Z=34
2A000285
£166,24 Unit Price incl. VAT
20
2nd gear on the sec. Z=33
2A000284
£178,76 Unit Price incl. VAT
21
6th gear on the sec. Z=34
2A000288
£245,30 Unit Price incl. VAT
22
4th gear on the sec. Z=31
2A000286
£167,41 Unit Price incl. VAT
23
Washer 24x35x1
857246
£15,91 Unit Price incl. VAT
24
Washer 20,1x33,5x2,5
857245
£14,26 Unit Price incl. VAT
25
Fork
2A000558
£204,76 Unit Price incl. VAT
26
Ball bearing 30X72X19
898633
£25,27 Unit Price incl. VAT
27
Fork
2A000453R
£254,58 Unit Price incl. VAT
28
Washer for shafts
857232
£5,14 Unit Price incl. VAT
29
Clearance washer
857234
£20,42 Unit Price incl. VAT
30
6th gear on the sec. Z=27
2A000281
£124,98 Unit Price incl. VAT
31
5th gear on the sec. Z=23
2A000280
£190,90 Unit Price incl. VAT
32
2nd gear on the sec. Z=16
2A000278
£83,14 Unit Price incl. VAT
33
3rd-4th pinion gear Z=20/21
2A000554
£374,59 Unit Price incl. VAT
34
Primary gear shaft
2A000552
£366,78 Unit Price incl. VAT
35
Shift cam
857251
£223,34 Unit Price incl. VAT
36
Index washer
857123
Not Available
37
Index assy. lever
857274
£40,28 Unit Price incl. VAT
38
Washer D6,3x18x1
AP9150051
£4,80 Unit Price incl. VAT
39
Screw w/ flange M6x15
AP9150006
£13,28 Unit Price incl. VAT
40
Spring
2A000048
£7,40 Unit Price incl. VAT
41
Gear shaft+spring cpl.
857253
£122,86 Unit Price incl. VAT
42
Screw w/ flange M10x35
AP8152318
£3,62 Unit Price incl. VAT
43
Pinion Z=16
890827
£74,64 Unit Price incl. VAT
44
Belleville spring
854909
£2,17 Unit Price incl. VAT
45
T bush
854951
£9,96 Unit Price incl. VAT
46
O-ring
857494
£7,85 Unit Price incl. VAT
47
Gear position sensor
2D000300
Not Available
48
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
49
Threaded pin
899599
£14,77 Unit Price incl. VAT
50
Ball bearing 20x52x15
898636
£15,42 Unit Price incl. VAT
51
Fasten spring
857260
£18,00 Unit Price incl. VAT
52
Spring
2A000047
£10,07 Unit Price incl. VAT
53
Hex socket screw M6x16 inox
GU98370616
£2,48 Unit Price incl. VAT
54
Pin M8x12
857427
£2,23 Unit Price incl. VAT
55
12x8x12 roller bearing
B045224
£7,79 Unit Price incl. VAT
56
Roller cage HK1512
857249
£28,31 Unit Price incl. VAT
57
Screw w/ flange M8x25
AP8152287
£2,63 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
