1
Engine displacement
125
2
Model
LEONARDO
3
Year
1997
4
Trim
Leonardo
5
Parts Catalog
Central body II
6
Parts Diagram
Parts Catalog
Sealing and lubricating agents
by
Carburettor I
Central body II
1
2
3
4
5
6
7
8
9
10
11
1
Tunnel cover, m.cyan
AP8139179
Not Available
1
Tunnel cover, chr.green
AP8138991
Not Available
1
Tunnel cover, l.red
AP8138853
Not Available
1
Tunnel cover, grey
AP8139188
Not Available
1
Tunnel cover, blue
AP8139183
Not Available
1
Tunnel cover, s.blue
AP8138606
Not Available
1
Tunnel cover, brio yellow
AP8139157
Not Available
1
Tunnel cover, mallow violet
AP8139168
Not Available
1
Tunnel cover, grey
AP8138617
Not Available
2
Fuel filler lid pin
AP8121985
Not Available
3
Fuel filler cap lid spring
AP8121986
Not Available
4
Split pin
AP8101928
£1,96 Unit Price incl. VAT
5
Lever
AP8201620
£8,00 Unit Price incl. VAT
6
Lock
AP8201747
Not Available
7
Washer 4,3x12x1
AP8150011
£1,88 Unit Price incl. VAT
8
Low nut M19x1*
AP8152194
£2,42 Unit Price incl. VAT
9
Nickel plated lock washer *
AP8201305
Not Available
10
Washer
AP8201748
£1,27 Unit Price incl. VAT
11
Screw M4x6
AP8201749
£1,00 Unit Price incl. VAT

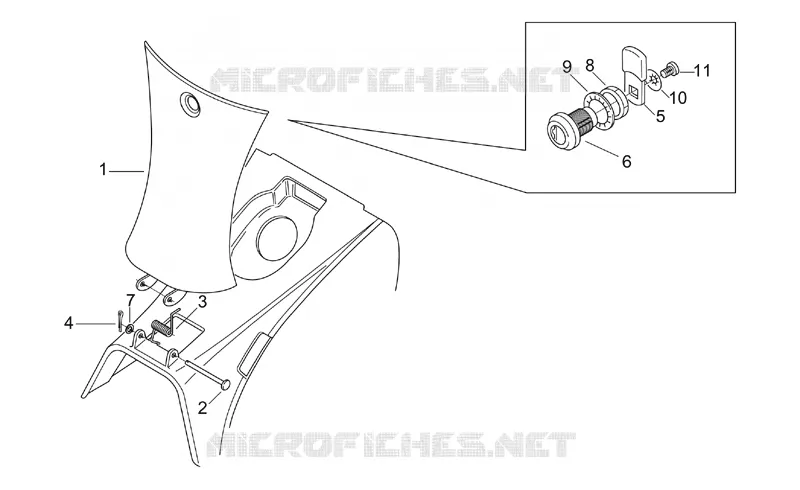

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
