Engine displacement
1000
2
Model
RSV4
3
Year
2017
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Rear master cylinder
by
Front fork Ohlins
Cooling system
7
8
9
10
11
12
13
32
33
34
34
35
36
37
38
38
39
1
2
3
31
30
29
28
27
27
18
19
20
20
21
21
21
22
22
22
23
23
24
24
24
25
26
26
27
27
14
17
16
14
14
15
16
6
6
6
6
5
4
4
4
4
1
Water cooler
B045753
Not Available
2
Fan, cpl.
2D000310
Not Available
3
Water cooler upper support
897775
£24,43 Unit Price incl. VAT
4
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
5
Cover
893954
£70,10 Unit Price incl. VAT
6
Hose clamp
CM269609
£3,60 Unit Price incl. VAT
7
Adhesive sponge
AP8117033
£8,10 Unit Price incl. VAT
8
Thermostat-cooler pipe
2B002204
£35,21 Unit Price incl. VAT
9
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
10
Thermostat valve set 75°C
856279
£84,72 Unit Price incl. VAT
11
Hose H2O
2B002207
£16,66 Unit Price incl. VAT
12
Thermostat-pump pipe
AP8144033
£23,12 Unit Price incl. VAT
13
Hose clamp D11,3
AP8102378
£4,01 Unit Price incl. VAT
14
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
15
Cooler-pump pipe
858488
£135,50 Unit Price incl. VAT
16
Hose clamp
CM269603
£3,60 Unit Price incl. VAT
17
Thermostat-engine pipe
2B002208
£28,10 Unit Price incl. VAT
18
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
19
Hose clamp
893224
£10,54 Unit Price incl. VAT
20
Screw
893514
£2,48 Unit Price incl. VAT
21
Washer d4,5
893823
£7,85 Unit Price incl. VAT
22
Spacer
893513
£5,14 Unit Price incl. VAT
23
Washer 4,3x12x1
AP8150011
£1,88 Unit Price incl. VAT
24
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
25
Temperature gauge
640485
Not Available
26
Engine-manifold pipe
2B002203
£37,43 Unit Price incl. VAT
27
Hose clip 26x8
AP9100456
£3,49 Unit Price incl. VAT
28
Manifold
856543
£26,28 Unit Price incl. VAT
29
Fuel pipe 5,5x10
AP8120952
Not Available
30
Expansion tank plug
AP8104836
Not Available
31
Expansion tank
858908
£89,02 Unit Price incl. VAT
32
T bush *
AP8221145
£9,78 Unit Price incl. VAT
33
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
34
T bush
AP8121728
£1,88 Unit Price incl. VAT
35
Bush
AP8121991
£3,60 Unit Price incl. VAT
36
Cable-guide
AP8221150
£2,48 Unit Price incl. VAT
37
Bush
895450
£7,85 Unit Price incl. VAT
38
Hose
AP8144720
£13,62 Unit Price incl. VAT
39
Stop ring
AP8120573
£0,73 Unit Price incl. VAT

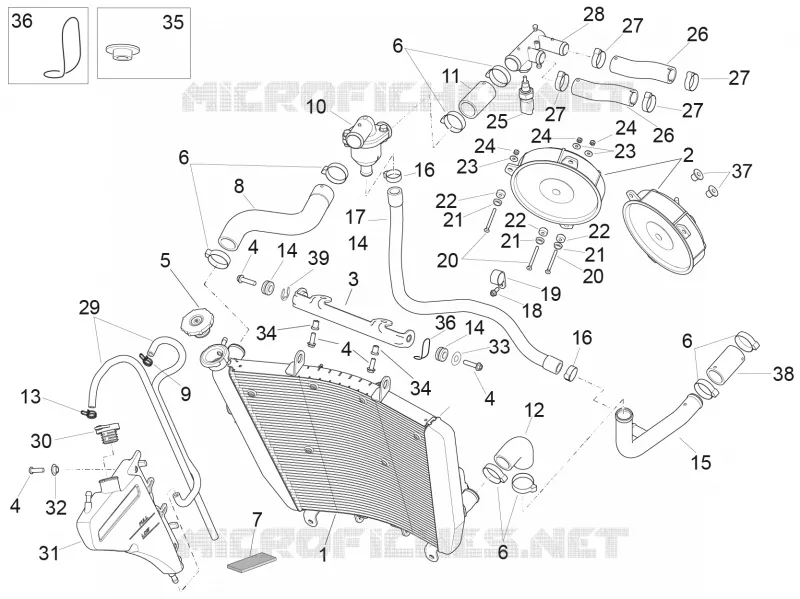

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
