Engine displacement
150
2
Model
LEONARDO
3
Year
1996
4
Trim
Leonardo
5
Parts Catalog
Engine
6
Parts Diagram
Parts Catalog
Ignition unit
by
RH Semi-crankcase I
Engine
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Engine, complete 120
AP8106290
Not Available
1
Complete engine, water cooled
AP8106427
Not Available
1
Engine, complete 120
AP8106560
Not Available
1
Engine, complete 120
AP8106448
Not Available
1
Complete engine, water cooled
AP8106561
Not Available
2
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
3
Variator cooling filter
AP8102522
£6,64 Unit Price incl. VAT
4
Variator air intake, grey
AP8138948
Not Available
4
Variator air intake
AP8120879
Not Available
5
Shock absorber
AP8123790
Not Available
5
Shock absorber Showa
AP8123796
Not Available
5
Shock absorber
AP8123406
Not Available
6
Helmet holder hook
AP8221206
£30,73 Unit Price incl. VAT
7
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
8
Screw w/ flange
AP8152289
£1,27 Unit Price incl. VAT
9
Screw w/ flange M8x40
AP8152290
£2,63 Unit Price incl. VAT
10
Cable-guide
AP8221172
£12,64 Unit Price incl. VAT
11
Water cooler filter support
AP8138938
Not Available
12
T bush
AP8121266
Not Available
13
T bush *
AP8121725
£1,88 Unit Price incl. VAT
14
Rear black mudguard support
AP8134362
Not Available

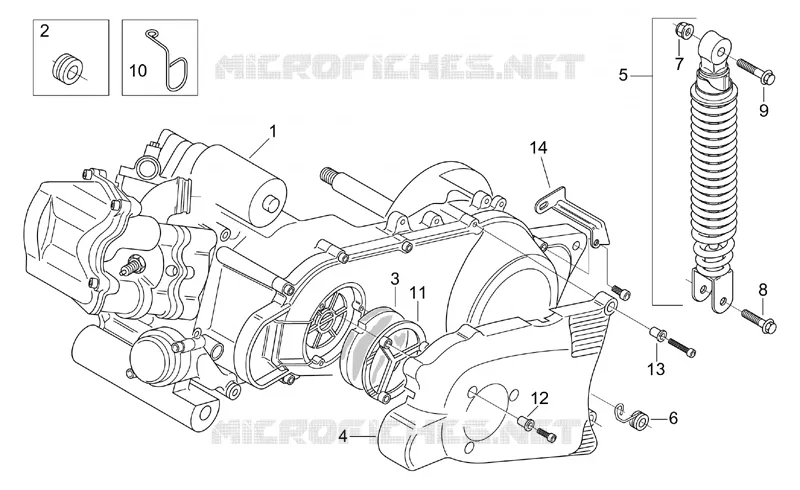

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
