1
Engine displacement
1000
2
Model
RSV4
3
Year
2017
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog

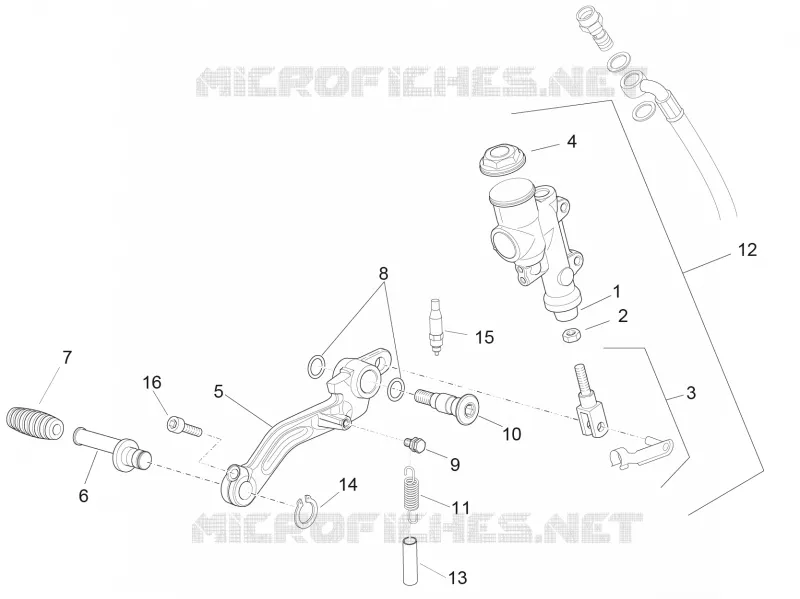

Rear master cylinder
6
Parts Diagram
Parts Catalog
Rear lights
by
Cooling system
Rear master cylinder
15
16
14
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Rubber bellows
893933
£28,50 Unit Price incl. VAT
2
Nut
020006
Not Available
3
Push rod set
898694
£80,58 Unit Price incl. VAT
4
Plug
898695
£53,12 Unit Price incl. VAT
5
Rear brake lever
858785
£75,13 Unit Price incl. VAT
6
Brake lever pin
AP8121221
£22,68 Unit Price incl. VAT
7
Lever rubber
AP8120912
£3,68 Unit Price incl. VAT
8
O-ring 11,11x1,78
AP8144007
£1,39 Unit Price incl. VAT
9
Fixing pin
859946
£9,66 Unit Price incl. VAT
10
Rear brake lever pin
AP8121223
Not Available
11
Spring
893138
£10,82 Unit Price incl. VAT
12
Rear master cylinder
B044586
£516,42 Unit Price incl. VAT
13
Silent block, spring
AP8120822
£7,93 Unit Price incl. VAT
14
Circlip d9
AP8150462
£1,39 Unit Price incl. VAT
15
Microswitch
AP8112996
£78,91 Unit Price incl. VAT
16
Hex socket screw M6x20
AP8224470
£1,27 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
