1
Engine displacement
1000
2
Model
RSV4
3
Year
2017
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Locks
6

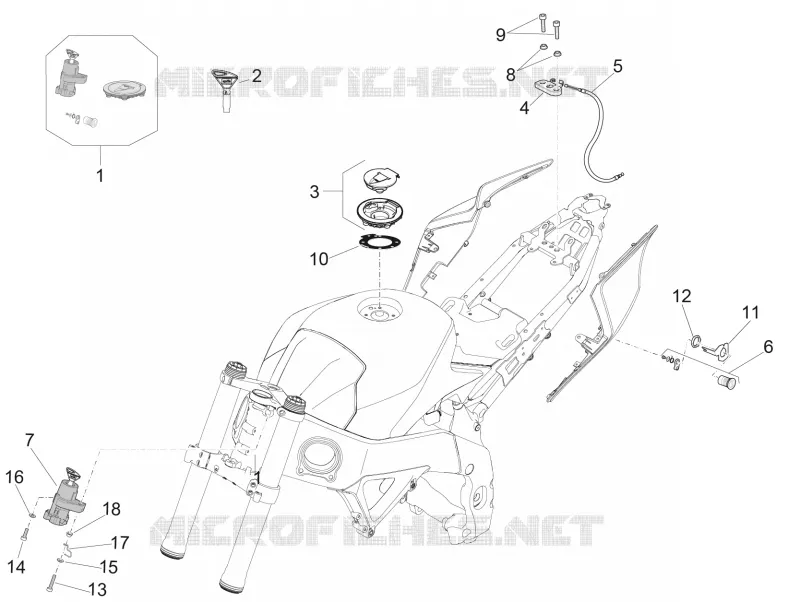

Parts Diagram
Parts Catalog
Saddle
by
Locks
18
15
17
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Lock kit
B043920
Not Available
2
"Aprilia" key with transpo.
AP8140711
£78,13 Unit Price incl. VAT
3
Fuel filler cap and lock
B043929
£252,66 Unit Price incl. VAT
4
Pass.saddle connecting plate
AP8102913
£30,04 Unit Price incl. VAT
5
Lock cable
858955
£14,76 Unit Price incl. VAT
6
Seat lock with key
AP8104719
£191,12 Unit Price incl. VAT
7
Main switch - steering lock
858580
Not Available
8
Bush
AP8221129
£2,51 Unit Price incl. VAT
9
Hex socket screw M6x35
AP8150285
£1,94 Unit Price incl. VAT
10
Fuel filler cap gasket
AP8104803
£26,76 Unit Price incl. VAT
11
Plate
AP8134948
£13,22 Unit Price incl. VAT
12
Lock nut M22x1,5
AP8102523
£9,53 Unit Price incl. VAT
13
Hex socket screw M8x35
AP8150236
£1,27 Unit Price incl. VAT
14
Shear rivet M8x28
AP8152238
£10,54 Unit Price incl. VAT
15
Washer 8,4x16x1,6
AP8150017
£1,88 Unit Price incl. VAT
16
Washer 8,4x13*
AP8152154
£1,88 Unit Price incl. VAT
17
Fairlead
AP8121475
£4,61 Unit Price incl. VAT
18
T bush 8,2x12x4
AP8121096
£1,96 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
