1
Engine displacement
1000
2
Model
RSV4
3
Year
2017
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Instruments
6
Parts Diagram
Parts Catalog
Exhaust pipe
by
ABS Brake system

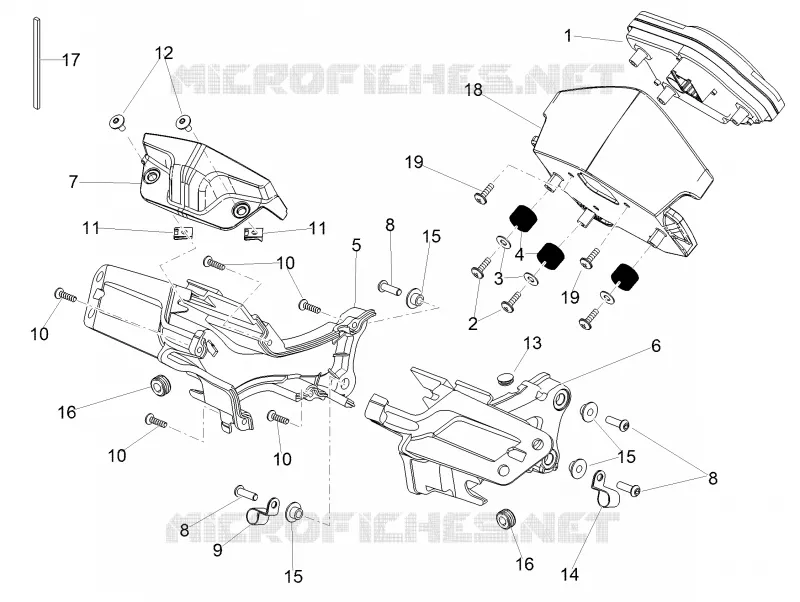

Instruments
17
15
16
18
19
19
15
1
2
3
4
4
5
6
7
8
8
9
10
10
10
10
10
11
11
12
13
14
15
1
Digital dashboard
2D000278
Not Available
2
Self-tap screw 5x14
AP8150509
£1,94 Unit Price incl. VAT
3
Washer 5x20x1,5
AP8150255
£0,98 Unit Price incl. VAT
4
Rubber spacer
AP8220150
£3,13 Unit Price incl. VAT
5
Right instrument panel support
2B002001
£47,14 Unit Price incl. VAT
6
Left instrument panel support
2B001562
£47,14 Unit Price incl. VAT
7
Up. Dashboard cover
2B003401
£35,56 Unit Price incl. VAT
8
Screw M6x20
270361
Not Available
9
Hose clamp
845978
£8,57 Unit Price incl. VAT
10
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
11
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
12
Hex socket screw M5x9
AP8150500
£2,18 Unit Price incl. VAT
13
Cover
197551
£3,19 Unit Price incl. VAT
14
Hose clamp
898126
£6,98 Unit Price incl. VAT
15
T bush
AP8121728
£1,88 Unit Price incl. VAT
16
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
17
Adhesive sponge
2B002474
£11,42 Unit Price incl. VAT
18
Dashboard lid
2B003402
£10,21 Unit Price incl. VAT
19
Hex socket screw Black M5x12
896174
£2,48 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
