Engine displacement
1000
2
Model
RSV4
3
Year
2017
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Frame
6
Parts Diagram
Parts Catalog
Cylinder - Piston
by
Shock absorber
Frame
10
10
11
11
11
11
17
17
16
15
14
13
13
12
12
11
11
11
9
3
4
5
6
7
7
7
7
8
8
9
9
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
31
32
33
34
35
2
2
1
1
Frame, anod.
8954604
Not Available
2
Steering bushings pair
2B001123
£110,30 Unit Price incl. VAT
3
Dowel
858729
£29,83 Unit Price incl. VAT
4
LH -5 Swingarm insert
2B001451
£16,94 Unit Price incl. VAT
5
RH -5 int. Swingarm insert
2B001453
£17,80 Unit Price incl. VAT
6
External swingarm insert RH -5
2B001452
£16,68 Unit Price incl. VAT
7
Front Insert pos. +5
858717
Not Available
8
RH spacer
858718
£18,06 Unit Price incl. VAT
9
Screw w/ flange M10x55
AP8152410
£13,28 Unit Price incl. VAT
10
Screw w/ flange
AP8152481
£6,29 Unit Price incl. VAT
11
Curved spring washer *
AP8150292
£1,88 Unit Price incl. VAT
12
Bush
858710
£25,40 Unit Price incl. VAT
13
Rear Insert pos. +5
858714
£59,12 Unit Price incl. VAT
14
Rear Insert pos. -5
2B001454
£17,10 Unit Price incl. VAT
15
Screw w/ flange M10x80
AP8152398
£13,28 Unit Price incl. VAT
16
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
17
Washer 10,5x25x4
AP8152441
£1,64 Unit Price incl. VAT
18
Hex socket screw M8x30
AP8150107
£1,94 Unit Price incl. VAT
19
Washer 8,4x13*
AP8152154
£1,88 Unit Price incl. VAT
20
Pin
858712
£126,90 Unit Price incl. VAT
21
Rear engine support
2B001354
£49,80 Unit Price incl. VAT
22
Hex threaded insert
AP8102902
£1,88 Unit Price incl. VAT
23
Pin
894027
Not Available
24
Flanged nut
AP8150506
£1,27 Unit Price incl. VAT
25
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
26
Fixing bracket
2B001525
£46,28 Unit Price incl. VAT
27
Saddle support
2B003589
£1 208,45 Unit Price incl. VAT
28
Headlight support clamp
858903
£23,00 Unit Price incl. VAT
29
Support bracket
858904
£26,44 Unit Price incl. VAT
30
Threaded rivet
AP8201755
£6,38 Unit Price incl. VAT
31
Hex socket screw M10x30
AP8150469
£5,41 Unit Price incl. VAT
32
Adhesive sponge
AP8117033
£8,10 Unit Price incl. VAT
33
Threaded rivet M6
AP8102544
£3,68 Unit Price incl. VAT
34
Threaded rivet
AP8104390
£4,46 Unit Price incl. VAT
35
Gasket
AP8144707
£10,22 Unit Price incl. VAT

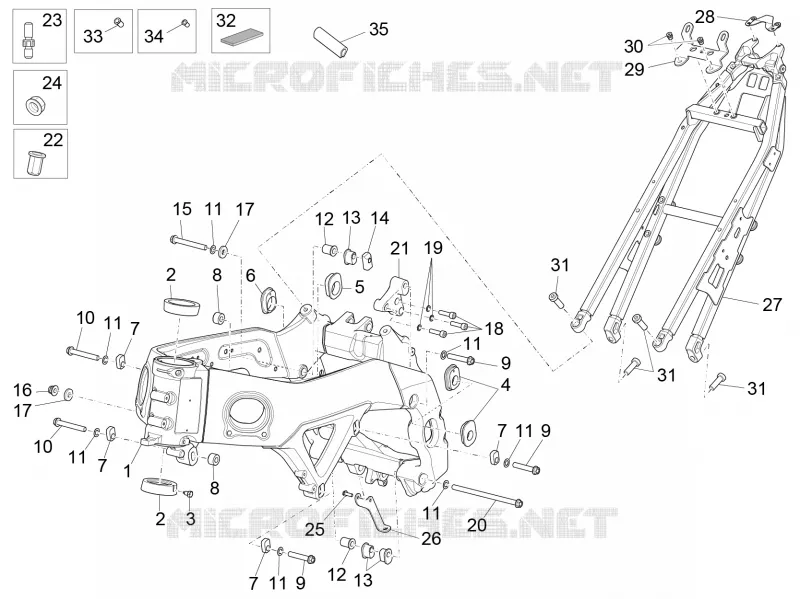

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
