Engine displacement
1000
2
Model
RSV4
3
Year
2017
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Foot rests
6
Parts Diagram
Parts Catalog
Duct
by
Lubrication
Foot rests
27
28
22
23
23
24
20
21
26
25
25
25
13
14
14
14
15
16
16
17
17
17
17
18
18
19
19
12
12
1
2
2
3
3
4
4
5
5
6
6
6
6
7
8
9
9
9
10
11
11
11
11
25
1
RH front footrest bracket
2B003414
Not Available
2
Front footrest, pair
AP8146862
Not Available
3
Footrest pin
AP8134955
£22,21 Unit Price incl. VAT
4
Footrest pin
CM228401
£3,17 Unit Price incl. VAT
5
Footrest return spring
AP8121224
£4,21 Unit Price incl. VAT
6
Stop ring
AP8120573
£0,73 Unit Price incl. VAT
7
Springs fixing pin
GU05677730
£21,06 Unit Price incl. VAT
8
LH front footrest bracket
AP8146502
Not Available
9
Screw
AP8150540
£10,54 Unit Price incl. VAT
10
Hex socket screw M6x20
AP8224470
£1,27 Unit Price incl. VAT
11
Curved spring washer 6x12
658830
£0,95 Unit Price incl. VAT
12
RH protection
858787
£65,86 Unit Price incl. VAT
13
LH protection
858788
£65,86 Unit Price incl. VAT
14
Hex socket screw M6x12
AP8150537
£1,27 Unit Price incl. VAT
15
LH rear footrest guard
894201
£44,93 Unit Price incl. VAT
16
Footrest pin
CM228402
£3,34 Unit Price incl. VAT
17
Footrest plate
AP8134451
£5,77 Unit Price incl. VAT
18
Ball D6,35
AP8101861
£0,36 Unit Price incl. VAT
19
Coil compress. spring
AP8121133
£3,22 Unit Price incl. VAT
20
Rear footrest, RH
AP8146616
£134,70 Unit Price incl. VAT
21
Rear footrest, RH cpl
893996
£359,69 Unit Price incl. VAT
22
Rear footrest, LH
893997
£359,69 Unit Price incl. VAT
23
Hex socket screw M6x12
AP8150537
£1,27 Unit Price incl. VAT
24
Rear footrest, LH
AP8146617
£134,70 Unit Price incl. VAT
25
Curved spring washer 6x12
658830
£0,95 Unit Price incl. VAT
26
Stop switch
2D000325
£60,13 Unit Price incl. VAT
27
Maintenance switch
2B003519
£4,21 Unit Price incl. VAT
28
Stop switch
2D000325
£60,13 Unit Price incl. VAT

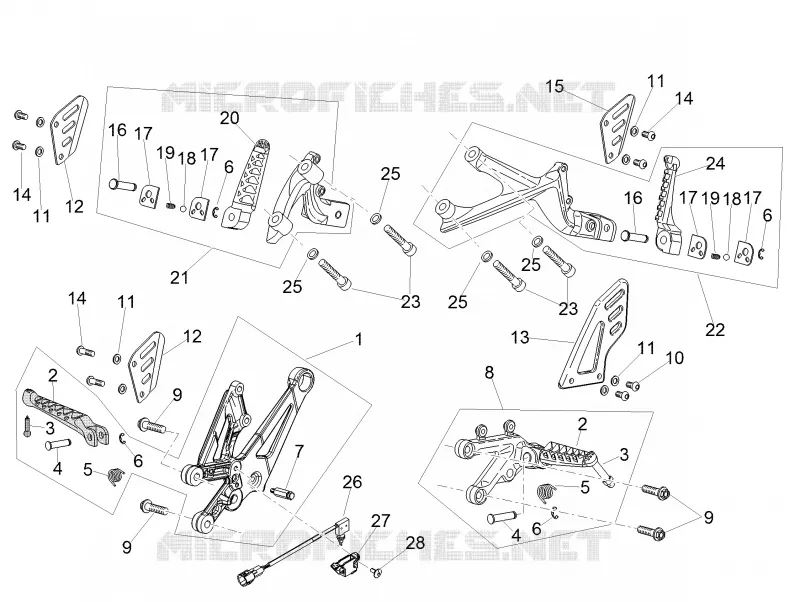

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
