Engine displacement
150
2
Model
LEONARDO
3
Year
1997
4
Trim
Leonardo
5
Parts Catalog
Central semi-crankcase I
6
Parts Diagram
Parts Catalog
Valve control
by
Lights II
Central semi-crankcase I
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
20
20
20
20
21
1
Bearing 6003-2RS
AP0232621
Not Available
2
Bearing 6302
AP0232291
Not Available
3
Ball bearing
AP0932425
Not Available
4
Oil seal 30x52x7
AP0930900
Not Available
5
Sleeve crankcase
AP0260295
Not Available
6
Cover M15x1,5
AP0241140
Not Available
7
O-ring 14x3,2
AP0650350
Not Available
8
Cover M12x1,5
AP0841921
Not Available
9
Gasket ring 12x18
AP0250640
Not Available
10
Oil filter
AP0256450
Not Available
11
Oil filter cover
AP0211500
Not Available
12
O-ring
AP0430920
Not Available
13
Hex socket screw M6x30
AP0840880
£5,96 Unit Price incl. VAT
14
Gasket
AP0650180
£21,61 Unit Price incl. VAT
15
Hex socket screw M6x60
AP0240371
Not Available
16
Hex socket screw M6x80
AP0241501
Not Available
17
Loctite Anti Seize 50ml.15378
AP0297434
Not Available
18
Gasket ring 6x10
AP0230415
Not Available
19
Hex socket screw M6x30
AP0840880
£5,96 Unit Price incl. VAT
20
Tyre
0000000
Not Available
21
Tyre
0000000
Not Available

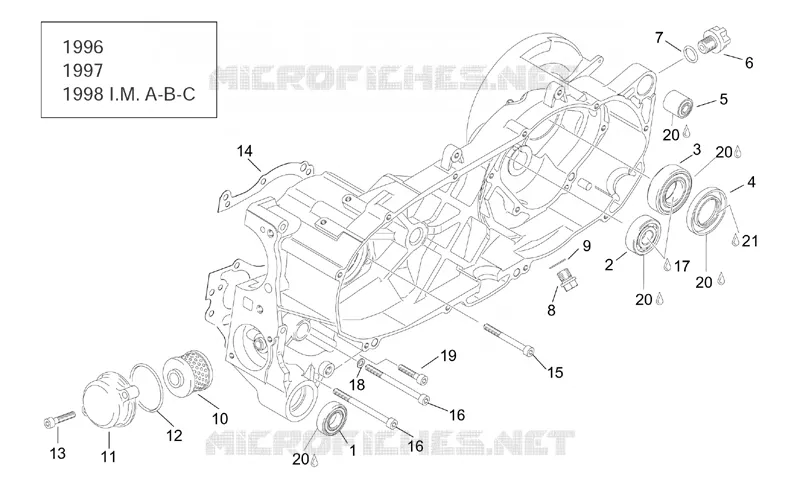

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
