Engine displacement
125
2
Model
LEONARDO
3
Year
1998
4
Trim
Leonardo
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Front body - Internal shield
by
Front wheel
Crankcase
1
2
3
4
5
6
6
6
6
6
7
7
8
9
10
11
12
13
13
13
13
14
14
14
14
14
15
15
16
17
17
1
Crankcase assy
AP0295616
Not Available
1
Crankcase assy
AP0295931
Not Available
2
Bearing half-shell 32x36x18
AP0233710
Not Available
3
Bearing half-shell 32x36x18
AP0233712
Not Available
4
Bearing half-shell 32x36x18
AP0233715
Not Available
5
Bearing half-shell 32x36x18
AP0233717
Not Available
6
Pin M8x12
AP0632010
Not Available
7
Pin 5x10
AP0929650
Not Available
8
Pin M6x50
AP0229301
Not Available
9
pipe
AP0224260
Not Available
10
Hex socket screw
AP0440193
Not Available
11
Gasket ring 8x13
AP0950141
Not Available
12
Oil seal 25x52x7
AP0831177
Not Available
13
Stud bolt 8x151-12,9
AP0640240
£20,82 Unit Price incl. VAT
14
Tyre
0000000
Not Available
15
Molykote G-N 50gr.
AP0297433
Not Available
16
Loctite (green) 648 5gr.
AP0899788
Not Available
17
Loctite (orange) 574
AP0899784
Not Available

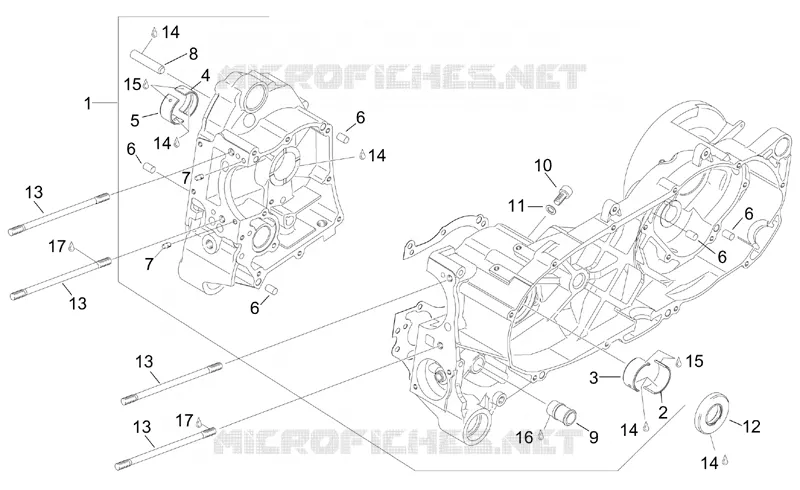

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
