1
Engine displacement
1000
2
Model
RSV4
3
Year
2017
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog

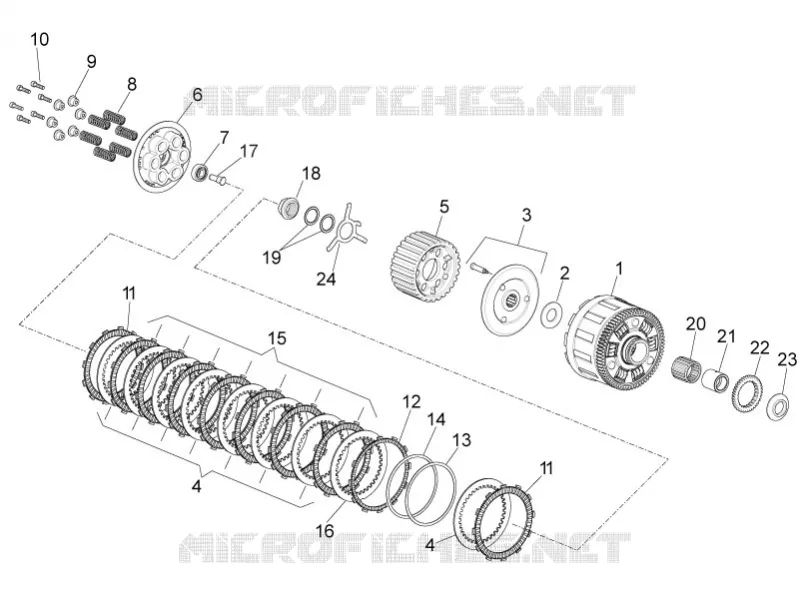

Clutch
6
Parts Diagram
Parts Catalog
Decal
by
Steering
Clutch
11
11
12
13
7
6
4
5
24
23
22
21
20
19
18
17
14
15
16
10
9
8
4
1
2
3
1
Clutch drum
2A000634
£851,14 Unit Price incl. VAT
2
Washer 25,5x47x2,5
893774
£62,22 Unit Price incl. VAT
3
Support assy.
894794
£812,06 Unit Price incl. VAT
4
Driven clutch disc
893783
£33,23 Unit Price incl. VAT
5
Aluminium clutch drum
893784
£369,67 Unit Price incl. VAT
6
Clutch pressure plate
893940
£146,04 Unit Price incl. VAT
7
Bearing
893941
£54,24 Unit Price incl. VAT
8
Clutch spring
893777
£34,55 Unit Price incl. VAT
9
Spring seat
893778
£17,03 Unit Price incl. VAT
10
Hex socket screw M6
893779
£15,91 Unit Price incl. VAT
11
Driving clutch disc
893780
£34,31 Unit Price incl. VAT
12
Clutch disc
893942
£43,58 Unit Price incl. VAT
13
Spring
893943
£80,29 Unit Price incl. VAT
14
Seat judder spring
893944
£35,45 Unit Price incl. VAT
15
Driving clutch disc
893782
£34,31 Unit Price incl. VAT
16
Driven clutch disc
899483
£30,43 Unit Price incl. VAT
17
Pawl clutch
899601
£97,76 Unit Price incl. VAT
18
Nut
893767
£96,74 Unit Price incl. VAT
19
Washer 31x44x0.9
B044365
£13,28 Unit Price incl. VAT
20
Roller cage 35x40x35,8
893769
£124,84 Unit Price incl. VAT
21
Spacer
893770
£53,98 Unit Price incl. VAT
22
Oil pump gear Z=39
894821
£146,51 Unit Price incl. VAT
23
Washer 58x25x8
893772
£63,42 Unit Price incl. VAT
24
Belleville spring sp.0,9
B044474
£31,22 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
