1
Engine displacement
150
2
Model
LEONARDO
3
Year
1996
4
Trim
Leonardo
5
Parts Catalog

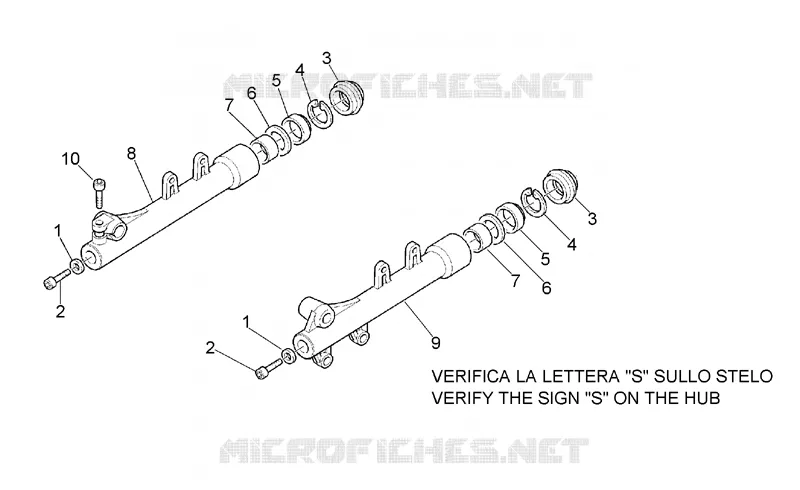

Front fork - Sleeves
6
Parts Diagram
Parts Catalog
Carburettor II
by
Connecting rod
Front fork - Sleeves
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
9
10
1
Seal washer
AP8203572
£1,90 Unit Price incl. VAT
1
Washer
AP8203794
Not Available
2
Screw M8x30
AP8123774
Not Available
2
Screw M8x30
AP8203570
Not Available
3
Dust cover
AP8123767
Not Available
3
Dust cover
AP8203258
Not Available
4
Stop ring
AP8123768
Not Available
4
Stop ring
AP8123704
Not Available
5
Oil seal
AP8123769
£22,30 Unit Price incl. VAT
5
Oil seal
AP8103199
£25,86 Unit Price incl. VAT
6
Cup
AP8123705
Not Available
6
Cup
AP8123770
Not Available
7
Bush
AP8123771
Not Available
7
Bush
AP8203447
£27,50 Unit Price incl. VAT
8
RH sleeve
AP8123772
Not Available
8
RH sleeve
AP8123706
Not Available
9
LH sleeve
AP8123707
Not Available
9
LH sleeve
AP8123773
Not Available
10
screw
AP8203571
Not Available
10
screw M6x20
AP8203796
£12,31 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
