Rear wheel FOR SXV FROM 2010

Free shipping for all orders to United Kingdom over £150! See conditions.

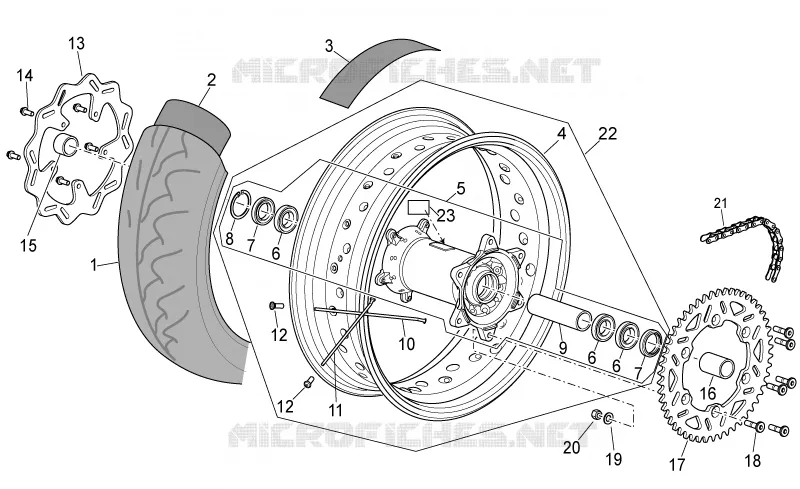

Rear wheel

1

Rear tyre 180/55 zr17 Pirelli

85197R

Not Available

2

Inner tube 17"

AP9100526

Not Available

3

Rear wheel flap

978683

Not Available

4

Rear wheel 5,5X17"

855803

Not Available

4

Rear wheel 5,5X17"

AP9100560

Not Available

5

Rear hub

AP9100322

Not Available

6

Ball bearing 25x42x9

AP9100216

Not Available

7

Gasket ring 32x42x7

AP9100227

Not Available

8

Circlip D.42

AP8121334

£1,76 Unit Price incl. VAT

9

Internal spacer L=134,3

AP9100584

£63,97 Unit Price incl. VAT

10

Spoke 4-17"-l.185

AP9101057

£8,21 Unit Price incl. VAT

11

Spoke d.4-17"-l.180

AP9101056

£8,21 Unit Price incl. VAT

12

Nipple d.4

AP9100569

£6,08 Unit Price incl. VAT

13

Rear brake disc d.240

AP9100466

£154,73 Unit Price incl. VAT

14

Screw w/ flange

598839

£1,27 Unit Price incl. VAT

14

Screw w/ flange

855625

£2,48 Unit Price incl. VAT

15

Outside spacer L=21,9

AP9100595

£27,47 Unit Price incl. VAT

16

Outside spacer L=45,1

AP9100596

£34,10 Unit Price incl. VAT

17

Chain ring Z=46

AP9100334

£156,82 Unit Price incl. VAT

18

Screw M8x30

855626

Not Available

18

Screw M8x30

AP9100467

£1,34 Unit Price incl. VAT

19

Washer

AP8150009

£1,26 Unit Price incl. VAT

20

Low self-locking nut M8x1,25

AP9100432

Not Available

21

Chain 5/8x1/4

AP9100715

Not Available

22

Rear wheel 17"

851066

Not Available

23

Spacer

AP9100318

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
