Parts Catalog
Foot rests
6

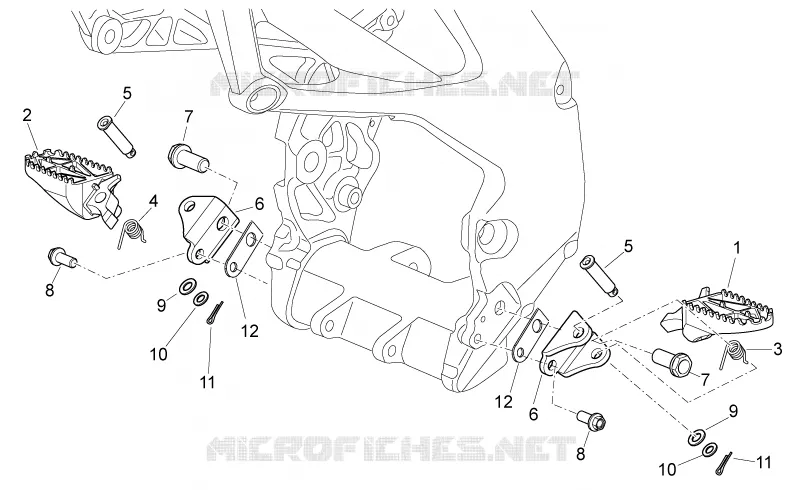

Parts Diagram
Parts Catalog
Front cylinder timing system
by
Oil tank II
Foot rests
1
2
3
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
1
LH footrest
AP9100193
Not Available
2
RH footrest
AP9100194
£138,25 Unit Price incl. VAT
3
Spring LH
AP9100195
£2,45 Unit Price incl. VAT
4
Spring RH
AP9100196
£2,45 Unit Price incl. VAT
5
Pin
AP9100197
£7,49 Unit Price incl. VAT
6
Footrest support
AP9100275
Not Available
7
screw M12x1,25
AP9100390
£6,98 Unit Price incl. VAT
8
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
9
Washer 10,5X18X2*
AP8152176
£3,65 Unit Price incl. VAT
10
Washer 8,4x16x1,6
AP8150017
£1,88 Unit Price incl. VAT
11
Split pin
AP8101606
Not Available
12
Footrest plate
898912
£10,03 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
