Engine displacement
450
2
Model
RXV-SXV
3
Year
2009
4
Trim
RXV-SXV Pikes Peak
5
Parts Catalog
Water pump
6
Parts Diagram
Parts Catalog
Clutch I
by
Primary gear shaft
Water pump
1
2
3
3
4
4
5
6
7
8
9
10
11
12
1
Water pump cover
AP9150484
Not Available
2
Screw w/ flange
AP8152283
£2,17 Unit Price incl. VAT
3
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
4
Bush D8x6,4X9,8
AP9150119
£15,16 Unit Price incl. VAT
5
O-ring D88,57x2,62
AP9150352
Not Available
6
Water pump impeller cpl.
AP9150132
£39,22 Unit Price incl. VAT
7
Washer D12,d7.05 SP1
AP9150292
£2,32 Unit Price incl. VAT
8
Water pump flange
AP9150464
Not Available
9
O-ring D18x1,8
851283
Not Available
10
Oil seal D10x22x7
AP9150474
Not Available
10
Oil seal D10x16x4
AP9150443
£11,39 Unit Price incl. VAT
11
Oil seal D10x22x7
AP9150474
Not Available
11
Oil seal D10x18x5/8
851013
£11,52 Unit Price incl. VAT
12
Cover bushing Clutch crankcase
851010
£23,90 Unit Price incl. VAT

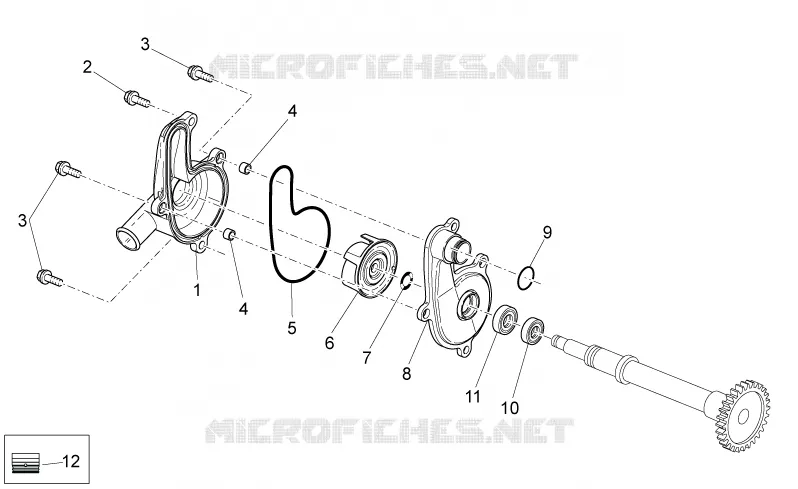

Find the detailed Water pump APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
