Parts Catalog
Fuel level sensor 96 M.I.B+97
6

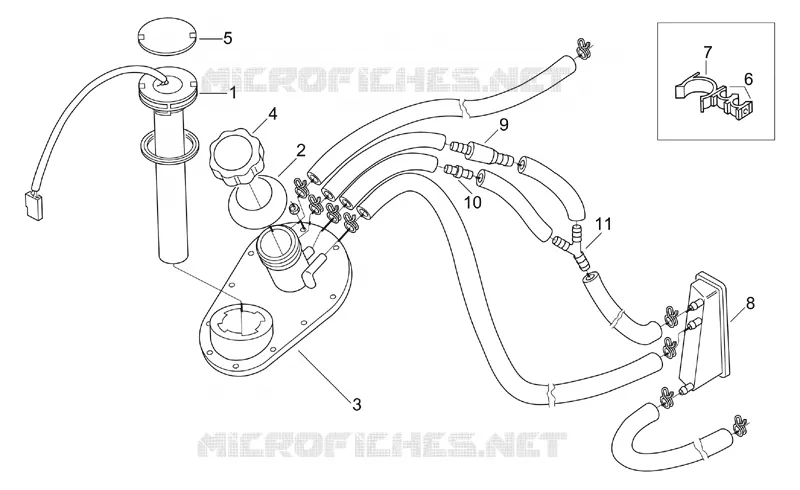

Parts Diagram
Parts Catalog
Plate set and handbook
by
Carburettor III
Fuel level sensor 96 M.I.B+97
1
2
3
4
5
6
7
8
9
10
11
1
Fuel level sensor
AP8124478
Not Available
2
Gasket ring
AP8102605
£15,49 Unit Price incl. VAT
3
Tank flange
AP8102760
Not Available
4
Fuel filler cap
AP8201757
Not Available
5
Ring
AP8144020
Not Available
6
Cable-guide D8
AP8201808
£3,25 Unit Price incl. VAT
7
Cable-guide D22
AP8201807
£3,92 Unit Price incl. VAT
8
Fuel anti-return chamber
AP8138998
Not Available
9
Anti-return valve
AP8102741
Not Available
10
Recirculation jet 0,5
AP8121251
Not Available
11
3-way union
AP8120116
£33,00 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
