Engine displacement
450
2
Model
RXV-SXV
3
Year
2009
4
Trim
RXV-SXV Pikes Peak
5
Parts Catalog
Crankcase I
6
Parts Diagram
Parts Catalog
Rear brake system
by
Front wheel II
Crankcase I
1
1
2
2
3
3
4
4
5
5
5
6
7
7
8
9
9
10
10
11
11
12
12
13
13
13
14
14
15
15
16
17
18
19
20
20
21
22
23
23
24
25
26
27
28
29
30
31
32
32
32
33
34
35
36
37
1
Carter, pair
AP9150089
Not Available
1
Carter, pair
AP9150079
Not Available
1
Carter, pair
AP9150239
Not Available
1
Carter, pair
AP9150080
Not Available
2
Check bearing plate
AP9150146
£10,93 Unit Price incl. VAT
3
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
4
Check bearing plate
AP9150145
£41,72 Unit Price incl. VAT
5
Screw M6x12
AP9150394
£1,21 Unit Price incl. VAT
6
Check bearing plate
AP9150489
£54,02 Unit Price incl. VAT
7
Screw w/ flange
AP8152283
£2,17 Unit Price incl. VAT
8
Oil seal D32x45x6
AP9150435
Not Available
9
Cover
AP9150149
£23,23 Unit Price incl. VAT
10
O-ring D26,65x2,62
AP9150353
£0,46 Unit Price incl. VAT
11
Bushing half-shell, blue
AP9150456
Not Available
11
Bearing half-shell, green
AP9150324
Not Available
11
Bushing half-shell, yellow
AP9150457
Not Available
12
T bush 34x21x10,5-L18
AP9150440
£26,24 Unit Price incl. VAT
13
T bush 28x13x10,5-L11,5
AP9150441
£17,33 Unit Price incl. VAT
14
T bush 19x13x10,5-L11,5
AP9150442
£15,41 Unit Price incl. VAT
15
Bush D16x19X13
AP9150116
£14,71 Unit Price incl. VAT
16
Bush D18x21X19
AP9150115
£15,64 Unit Price incl. VAT
17
Pin D7,2x9x12
AP9150117
£13,09 Unit Price incl. VAT
18
O-ring D8,73x1,78
AP9150350
Not Available
19
Oil unload plug
AP9150174
£7,85 Unit Price incl. VAT
20
Seal washer D12x18x1,5
AP9150349
Not Available
21
Joint
AP9150533
£12,47 Unit Price incl. VAT
22
Breather pipe
AP9150471
£1,26 Unit Price incl. VAT
23
Jet
AP9150346
£14,71 Unit Price incl. VAT
24
Screw w/ flange
AP8152285
£1,88 Unit Price incl. VAT
25
Washer D8x16x1,5
AP8121862
£1,01 Unit Price incl. VAT
26
Plate
AP9150439
Not Available
27
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
28
Oil unload plug
AP9150078
£24,74 Unit Price incl. VAT
29
Joint
AP9150109
£14,14 Unit Price incl. VAT
30
Seal washer D12x18x1,5
AP9150349
Not Available
31
Hose clamp D9,1*
AP8102377
£2,45 Unit Price incl. VAT
32
Screw w/ flange M7x1x42
AP9150526
£1,36 Unit Price incl. VAT
33
Screw w/ flange M6x65
AP8560104
Not Available
34
Screw w/ flange M6x75
AP8560106
Not Available
35
Joint
AP9150344
Not Available
36
Hose clip
AP9100998
Not Available
37
Breather pipe 5x9
AP9150545
£8,23 Unit Price incl. VAT

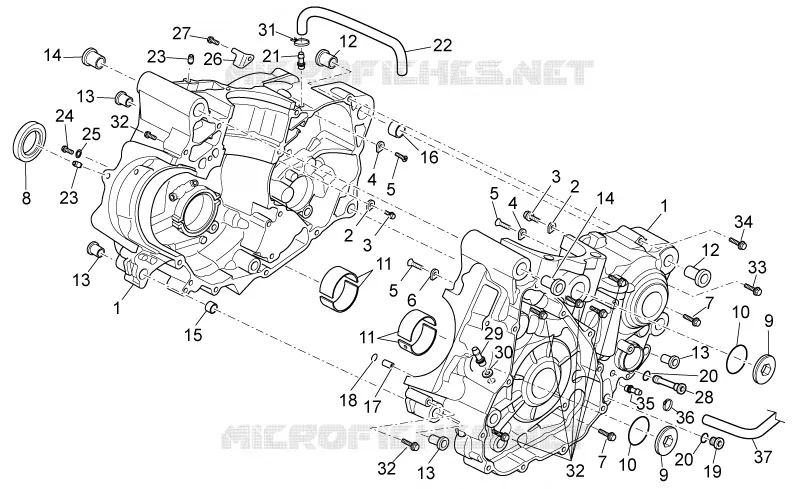

Find the detailed Crankcase I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
