Engine displacement
150
2
Model
LEONARDO
3
Year
1996
4
Trim
Leonardo
5
Parts Catalog
Front body - Internal shield
6

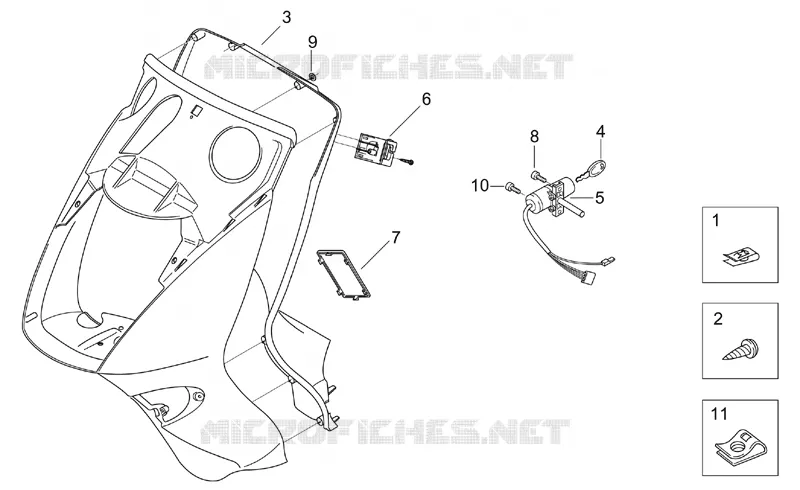

Parts Diagram
Parts Catalog
Fuel tank
by
Crankcase
Front body - Internal shield
1
2
3
4
5
6
7
8
9
10
11
1
Screw clip D4,2
AP8102782
Not Available
2
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
3
Internal shield, miami cyan
AP8139173
Not Available
3
Internal shield, mallow violet
AP8139162
Not Available
3
Internal shield, brio yellow
AP8139151
Not Available
3
Internal shield, l. red
AP8138848
Not Available
3
Internal shield, s. blue
AP8138608
Not Available
3
Internal shield, grey
AP8138619
Not Available
3
Internal shield, chr.green
AP8138985
Not Available
4
Aprilia milled key
AP8102221
Not Available
5
Main switch - steering lock
AP8124205
£114,42 Unit Price incl. VAT
6
Undersaddle hook cpl.
AP8201534
£40,78 Unit Price incl. VAT
7
Type appr.data cover, grey
AP8138157
Not Available
8
Shear rivet M6x17
AP8152140
£2,39 Unit Price incl. VAT
9
Washer 15x5,5X1,2
AP8150382
£1,88 Unit Price incl. VAT
10
Hex socket screw M6x16
AP8150137
£1,27 Unit Price incl. VAT
11
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
