1
Engine displacement
550
2
Model
RXV-SXV
3
Year
2009
4
Trim
RXV-SXV Pikes Peak
5
Parts Catalog

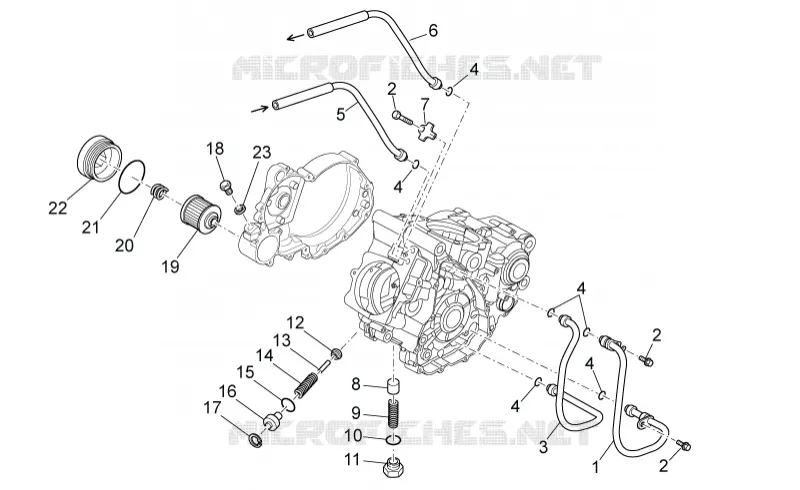

Lubrication
6
Parts Diagram
Parts Catalog
Steering I
by
Front fork I
Lubrication
1
2
2
2
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Oil outlet pipe
AP9150281
Not Available
2
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
3
Oil inlet pipe
AP9150280
£113,64 Unit Price incl. VAT
4
O-ring D11x2
AP9150347
£1,58 Unit Price incl. VAT
5
Oil outlet pipe
AP9100358
Not Available
6
Oil inlet pipe
AP9100362
Not Available
7
Lock plate
AP9100292
£16,03 Unit Price incl. VAT
8
Pressure adj. piston
AP9150168
£11,76 Unit Price incl. VAT
9
Spring
AP9150169
£10,28 Unit Price incl. VAT
10
O-ring D11,11x1,78
AP9150476
Not Available
11
Valve closer screw M14x1,5
AP9150170
Not Available
12
Oil anti-return valve
AP9150171
£6,59 Unit Price incl. VAT
13
Pin
AP9150321
£6,17 Unit Price incl. VAT
14
Spring
AP9150173
Not Available
15
O-ring D14x1,78
AP9150477
£10,33 Unit Price incl. VAT
16
Coupling bush
AP9150172
£90,54 Unit Price incl. VAT
17
Circlip D18
AP9150398
Not Available
18
Plug
851240
£6,43 Unit Price incl. VAT
19
Oil filter
AP9150166
£16,58 Unit Price incl. VAT
20
Spring
AP9150167
£12,95 Unit Price incl. VAT
21
O-ring D53,65x2,68
AP9150355
£4,93 Unit Price incl. VAT
22
Oil filter cover
AP9150151
£11,53 Unit Price incl. VAT
23
Washer 10,5x17x1,5
AP9150472
£2,22 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
