1
Engine displacement
550
2
Model
RXV-SXV
3
Year
2009
4
Trim
RXV-SXV Pikes Peak
5
Parts Catalog

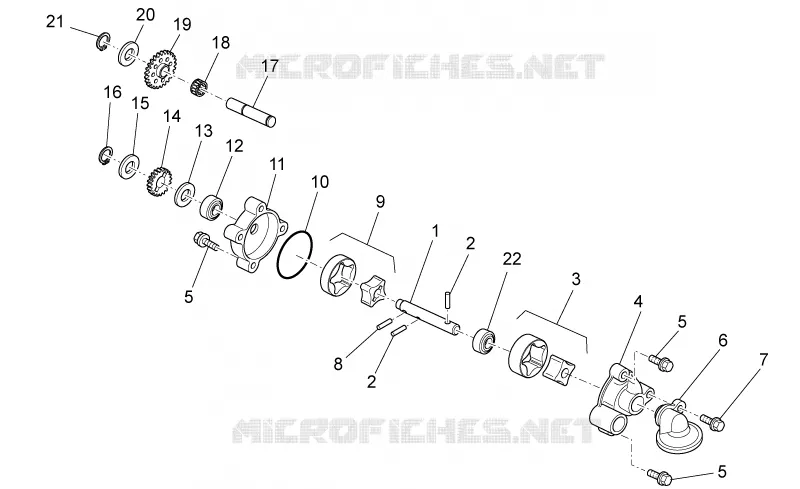

Oil pump
6
Parts Diagram
Parts Catalog
Driven shaft
by
Rear cylinder timing system
Oil pump
1
2
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Oil pump shaft assy.
AP9150071
£115,70 Unit Price incl. VAT
2
Pin 4x15,8
AP9150377
£22,86 Unit Price incl. VAT
3
Internal and external rotor H19
AP9150157
£77,64 Unit Price incl. VAT
4
Oil pump housing
AP9150158
Not Available
5
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
6
Filter with net-air intake
AP9150162
Not Available
7
Screw w/ flange M6x30
AP8152281
£1,80 Unit Price incl. VAT
8
Pin 4x13,8
AP9150376
£19,15 Unit Price incl. VAT
9
Internal and external rotor H8
AP9150291
£57,30 Unit Price incl. VAT
10
O-ring D44,17x1,78
AP9150461
£0,36 Unit Price incl. VAT
11
Oil pump housing
AP9150217
Not Available
12
Oil seal D19x10x7/5.5
AP9150385
£25,30 Unit Price incl. VAT
13
Clearance washer 10,1x23
AP9150076
£7,48 Unit Price incl. VAT
14
Oil pump gear Z=12
AP9150159
£293,11 Unit Price incl. VAT
15
Clearance washer 9,1x16x
AP9150075
£7,48 Unit Price incl. VAT
16
Circlip 9x1
AP9150396
£4,96 Unit Price incl. VAT
17
Pin 4x25,8
AP9150160
£111,02 Unit Price incl. VAT
18
Roller cage D11x16x10
AP9150463
Not Available
19
Idle gear Z=22
AP9150161
Not Available
20
Clearance washer 11,1x18
AP9150074
£7,48 Unit Price incl. VAT
21
Circlip D11
AP9150397
£2,33 Unit Price incl. VAT
22
Oil seal D10x16x4
AP9150443
£11,39 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
