Engine displacement
450
2
Model
RXV-SXV
3
Year
2009
4
Trim
RXV-SXV Pikes Peak
5
Parts Catalog
Rear brake system
6
Parts Diagram
Parts Catalog
Oil tank
by
Crankcase I
Rear brake system
1
2
3
4
5
6
7
7
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
1
Rear master cylinder
AP9100475
Not Available
2
Plug revision kit
AP9100794
Not Available
3
Piston, kit
AP9100793
Not Available
4
Lever overhaul kit
AP9100795
£77,80 Unit Price incl. VAT
5
Rear brake hose
AP9100478
£105,44 Unit Price incl. VAT
6
Hex screw M10x1,25
AP9100472
£7,88 Unit Price incl. VAT
7
Washer 14x10,2x1
AP9100473
Not Available
8
Stop switch
AP9100417
Not Available
9
Rear brake caliper
AP9100479
Not Available
10
Pads pair
AP9100797
Not Available
11
Spring
AP9100798
£11,78 Unit Price incl. VAT
12
Pin with cotter
AP9100800
£20,54 Unit Price incl. VAT
13
Cover
AP9100799
£10,67 Unit Price incl. VAT
14
Brake caliper rev. kit
AP9100796
Not Available
15
Rear brake lever
AP9100356
Not Available
16
Bush
AP9100290
Not Available
17
Spring
AP9100291
Not Available
18
O-ring 18x2
AP9100477
£5,14 Unit Price incl. VAT
19
Rear brake lever pin
AP9100354
£21,68 Unit Price incl. VAT
20
Hex socket screw M8x20
AP8150169
£1,66 Unit Price incl. VAT
21
Washer 8,4x16x1,6
AP8150017
£1,88 Unit Price incl. VAT
22
Split pin
AP8101928
£1,96 Unit Price incl. VAT
23
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
24
Bleeder kit
AP9100789
Not Available
25
Spring
AP9100752
Not Available

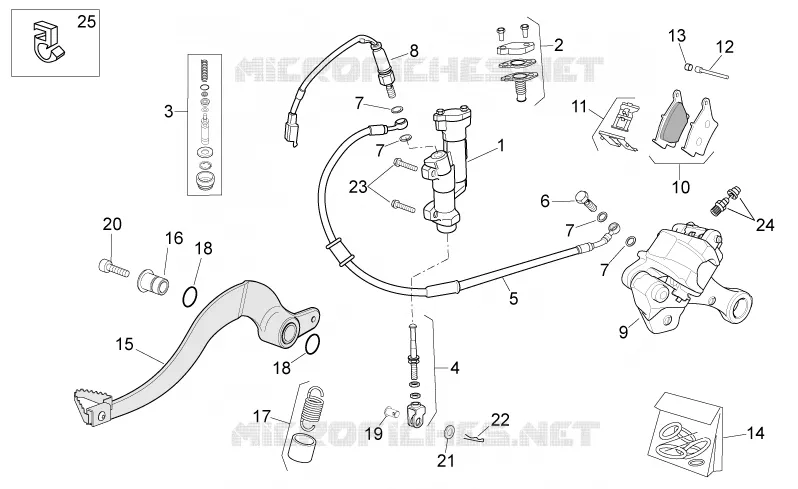

Find the detailed Rear brake system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
