Engine displacement
450
2
Model
RXV-SXV
3
Year
2008
4
Trim
RXV-SXV Vdb-Merriman
5
Parts Catalog
Throttle body
6
Parts Diagram
Parts Catalog
Crankcase II
by
Rear brake system
Throttle body
1
2
3
4
5
5
6
6
7
8
8
9
9
10
11
11
11
11
11
11
12
13
14
15
1
Throttle body
853520
Not Available
1
Throttle body
853519
Not Available
1
Throttle body
855261
Not Available
2
pipe benz.7,5x14,5
AP9100709
Not Available
3
Joint
AP9100494
Not Available
4
Hose clip 14,5x8
AP9100714
£2,34 Unit Price incl. VAT
5
Gaskets set
AP9101008
£131,50 Unit Price incl. VAT
6
Screw kit
AP9101009
£143,39 Unit Price incl. VAT
7
Potentiometer
AP9101010
Not Available
8
Injector
AP9101011
Not Available
9
Fuel rail cpl
AP9101012
£237,72 Unit Price incl. VAT
10
Min.eng.spd adj.cable
AP9101013
£129,29 Unit Price incl. VAT
11
Screw kit, clamps, clip
AP9101014
£90,73 Unit Price incl. VAT
12
Choke cable
855490
Not Available
13
Rod
855237
£35,68 Unit Price incl. VAT
13
Rod
855238
Not Available
14
Hex socket screw M5x20
AP8150252
£0,48 Unit Price incl. VAT
15
Nut
AP8150025
£1,01 Unit Price incl. VAT

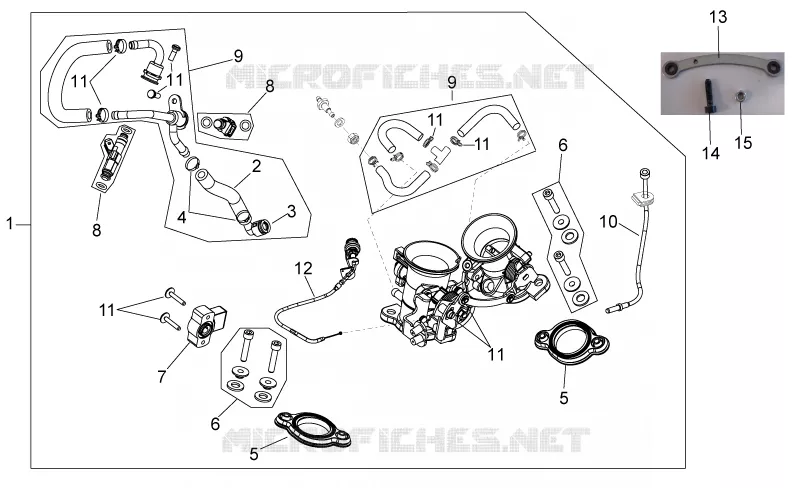

Find the detailed Throttle body APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
