1
Engine displacement
550
2
Model
RXV-SXV
3
Year
2008
4
Trim
RXV-SXV Vdb-Merriman
5
Parts Catalog
Central stand
6
Parts Diagram
Parts Catalog
Steering I
by
Front wheel II

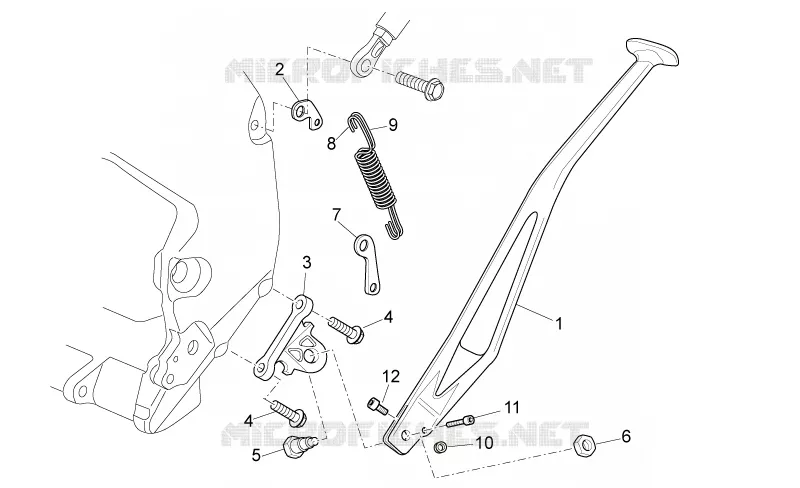

Central stand
1
2
3
4
4
5
6
7
8
9
10
11
12
1
Central stand
AP9100834
Not Available
1
Central stand
AP9100835
£194,80 Unit Price incl. VAT
2
Plate
AP9100964
Not Available
3
Stand plate
AP9100419
£56,20 Unit Price incl. VAT
4
Screw w/ flange
851280
Not Available
5
Central stand fixing screw
AP8161006
£11,47 Unit Price incl. VAT
6
Low nut M10x1,25
AP8152001
£2,63 Unit Price incl. VAT
7
Lateral stand plate
AP9100223
Not Available
8
Outer spring
AP9100668
£13,60 Unit Price incl. VAT
9
Inner spring
AP9100669
£13,60 Unit Price incl. VAT
10
Bush 8x5x7,8
AP9100836
£3,48 Unit Price incl. VAT
11
Hex socket screw
AP8150051
£16,02 Unit Price incl. VAT
12
Hex socket screw
AP8152123
£1,27 Unit Price incl. VAT

Find the detailed Central stand APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
