Engine displacement
550
2
Model
RXV-SXV
3
Year
2008
4
Trim
RXV-SXV Vdb-Merriman
5
Parts Catalog
Cylinder with piston
6
Parts Diagram
Parts Catalog
Exhaust unit I
by
Steering II
Cylinder with piston
1
1
2
2
2
2
3
3
4
4
5
1
Piston assy D80
851039
Not Available
1
Piston assy D76
851035
Not Available
2
Stop ring
851042
£10,57 Unit Price incl. VAT
2
Stop ring
851045
Not Available
3
Piston rings set D80
855601
Not Available
3
Piston rings set D76
AP9150123
£52,19 Unit Price incl. VAT
3
Piston rings set D80
AP9150338
Not Available
3
Piston rings set D76
851298
£41,62 Unit Price incl. VAT
4
Cylinder D80
AP9150301
Not Available
4
Cylinder D76
AP9150007
Not Available
5
O-ring D82,22x2,62
AP9150343
Not Available

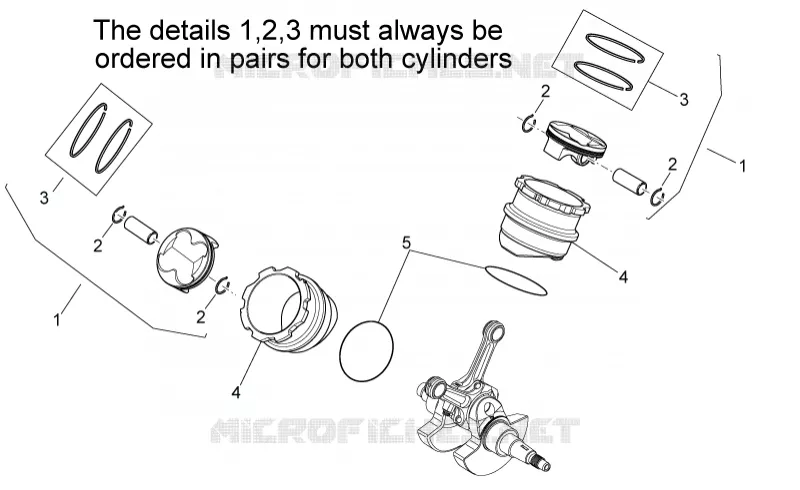

Find the detailed Cylinder with piston APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
