Front cylinder timing system

1

Front camshaft

8510025

Not Available

1

Front camshaft

8510005

Not Available

1

Camshaft

8511655

Not Available

2

Ball bearing D25x37x7

AP9150364

Not Available

3

Screw w/ flange M5x20

AP8152274

£1,80 Unit Price incl. VAT

4

Block

AP9150303

£27,88 Unit Price incl. VAT

5

Front valve control "5.90"

CM238602

Not Available

5

Front valve control "5.80"

CM238604

Not Available

5

Front valve control "5.85"

CM238603

Not Available

5

Front valve control

AP9150448

Not Available

5

Front valve control "5.75"

CM238605

Not Available

5

Front valve control "5.70"

CM238606

Not Available

6

Spring

AP9150138

£13,84 Unit Price incl. VAT

7

Rocker arm exhaust

AP9150096

Not Available

8

Rocker shaft

AP9150101

Not Available

9

Snap ring

AP9150102

£1,00 Unit Price incl. VAT

10

Ball bearing D25x42x9

AP9150372

Not Available

11

Snap ring D42

AP9150391

£2,98 Unit Price incl. VAT

12

Screw w/ flange M6x16

AP8152278

£1,91 Unit Price incl. VAT

13

Timing gear Z=22

AP9150506

£66,56 Unit Price incl. VAT

14

Special screw M16x1

AP9150507

£15,00 Unit Price incl. VAT

15

Camshaft chain

AP9150327

£34,73 Unit Price incl. VAT

15

Camshaft chain

AP9150133

Not Available

16

Chain guide plate L186

AP9150300

£13,08 Unit Price incl. VAT

16

Chain guide plate L177

AP9150011

Not Available

17

Chain tensioner sliding block

AP9150012

Not Available

18

Screw M6x12

AP9150231

Not Available

19

Chain tensioner gasket

AP9150141

£1,84 Unit Price incl. VAT

20

Chain tensioner

AP9150140

£44,10 Unit Price incl. VAT

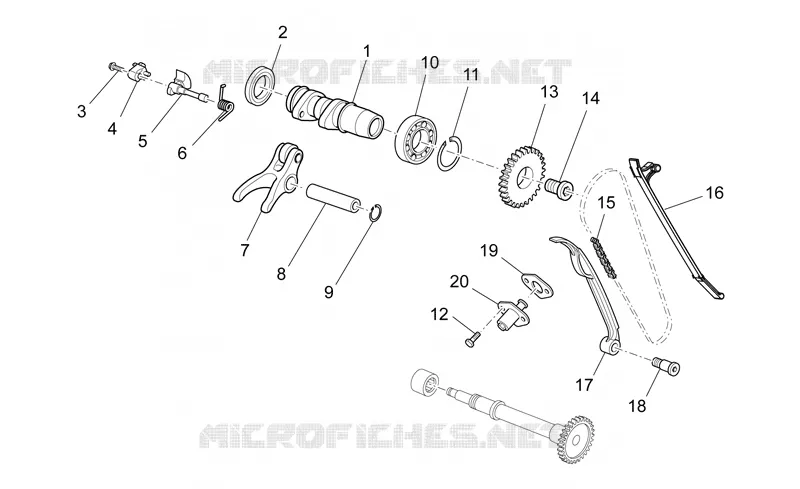

Find the detailed Front cylinder timing system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
