1
Engine displacement
550
2
Model
RXV-SXV
3
Year
2008
4
Trim
RXV-SXV
5
Parts Catalog

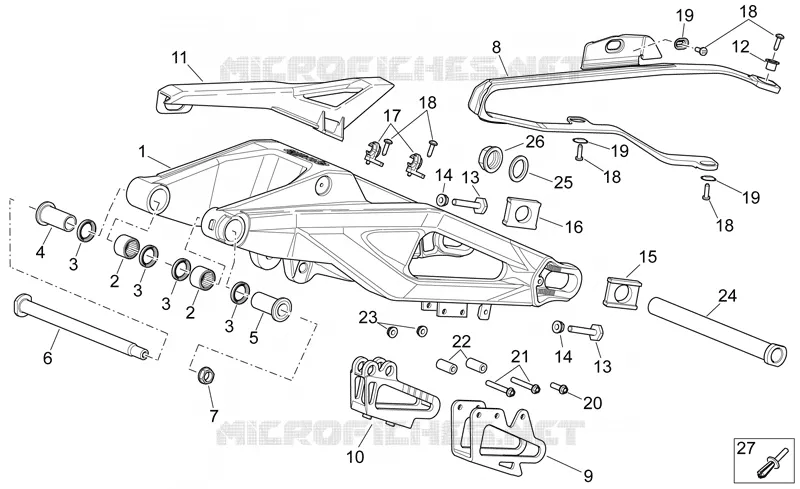

Swing arm
6
Parts Diagram
Parts Catalog
Front cylinder timing system
by
Front lights
Swing arm
1
2
2
3
3
3
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
16
17
18
18
18
18
19
19
19
20
21
22
23
24
25
26
27
1
Swing arm
AP9100104
Not Available
1
Swing arm
AP9100120
Not Available
2
Roller cage 22x29x30
AP9100202
Not Available
3
Gasket ring 22x29x4
AP9100203
Not Available
4
Piston pin L=47,5
AP9100952
£58,20 Unit Price incl. VAT
5
Piston pin L=47,5
AP9100952
£58,20 Unit Price incl. VAT
5
Piston pin L=59,5
AP9100953
£55,43 Unit Price incl. VAT
6
Rear swing arm pin M14 L=244
AP9100123
£144,96 Unit Price incl. VAT
6
Rear swing arm pin M14 L=256
AP9100264
£144,96 Unit Price incl. VAT
7
DAX flange nut M14x1,5
AP8152244
£3,62 Unit Price incl. VAT
8
Sliding block
AP9100061
£19,42 Unit Price incl. VAT
9
Chain guide
AP9100060
£46,02 Unit Price incl. VAT
10
Chain guide plate
AP9100109
£28,51 Unit Price incl. VAT
11
Chain guard
AP9100435
£32,58 Unit Price incl. VAT
12
Bush
AP9100616
Not Available
13
Chain tens.adjuster screw
AP8152305
£13,28 Unit Price incl. VAT
14
Low nut
AP8152262
Not Available
15
RH chain guide plate
AP8144444
£28,00 Unit Price incl. VAT
16
LH chain guide plate
AP8144443
£28,00 Unit Price incl. VAT
17
Brake hose cable guide
AP9100565
£12,44 Unit Price incl. VAT
18
Light adjustment self-threading screw
AP8150515
£2,22 Unit Price incl. VAT
19
Cup for shoe
AP8234020
£2,17 Unit Price incl. VAT
20
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
21
Screw w/ flange M6x50
AP9100433
£2,44 Unit Price incl. VAT
22
Bush
AP9100287
Not Available
23
Self-locking nut M6x1
AP9100434
£6,32 Unit Price incl. VAT
24
Rear wheel spindle M25 L=318,5
AP9100270
£89,44 Unit Price incl. VAT
24
Rear wheel spindle M25 L=266,5
AP9100221
£57,68 Unit Price incl. VAT
25
Washer 25,2x36x1
AP8152323
£8,57 Unit Price incl. VAT
26
Wheel spindle nut M25x1,5
AP8152324
£13,22 Unit Price incl. VAT
27
Plastic rivet, black
AP8202058
£12,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
