Air box FOR RXV-SXV FROM 2008

Free shipping for all orders to United Kingdom over £150! See conditions.

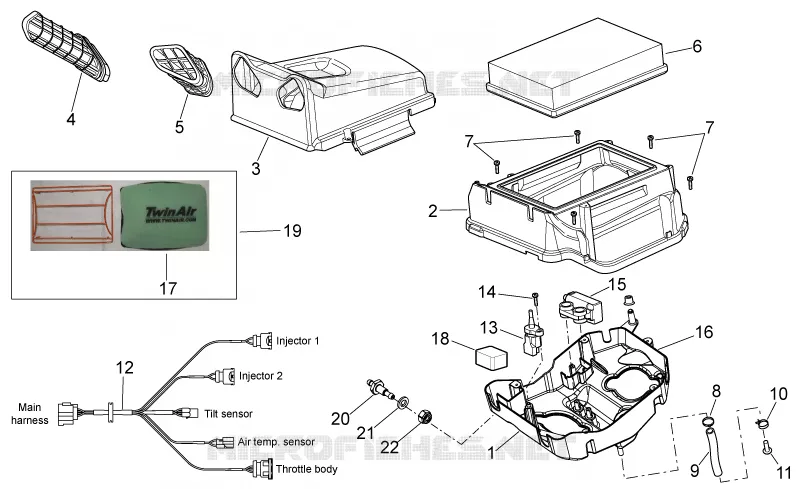

Air box

1

Filter housing base

853693

Not Available

1

Filter housing base

853691

£203,11 Unit Price incl. VAT

2

Filter housing body

853695

£98,77 Unit Price incl. VAT

3

Cover

AP9100703

Not Available

4

RH air intake

AP9100588

£12,13 Unit Price incl. VAT

5

LH air intake

AP9100587

£12,13 Unit Price incl. VAT

6

Air filter

AP8104329

£14,45 Unit Price incl. VAT

7

Screw 4,2x16*

AP8152351

£0,18 Unit Price incl. VAT

8

Hose clamp D10,1

AP8101595

£3,97 Unit Price incl. VAT

9

Fuel pipe 6x10

AP8144038

£38,70 Unit Price incl. VAT

10

Hose clamp D9,1*

AP8102377

£2,45 Unit Price incl. VAT

11

Plug

AP8120876

£8,23 Unit Price incl. VAT

12

Wiring

AP9100455

£49,43 Unit Price incl. VAT

13

Air temp. Sensor

AP9100427

£34,61 Unit Price incl. VAT

14

Self-tap screw 3,9x14

AP8150413

£1,61 Unit Price incl. VAT

15

Security sensor

AP9100428

£86,90 Unit Price incl. VAT

16

Gasket D4

AP8120593

Not Available

17

Air filter

858044

£27,48 Unit Price incl. VAT

18

Filter Blow-by

AP9101017

Not Available

19

Racing filter kit

851369

Not Available

20

Nozzle

855081

£11,41 Unit Price incl. VAT

21

Rubber spacer

AP8144065

£2,44 Unit Price incl. VAT

22

Low nut M8

AP8150431

£1,94 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
