1
Engine displacement
450
2
Model
RXV-SXV
3
Year
2008
4
Trim
RXV-SXV
5
Parts Catalog

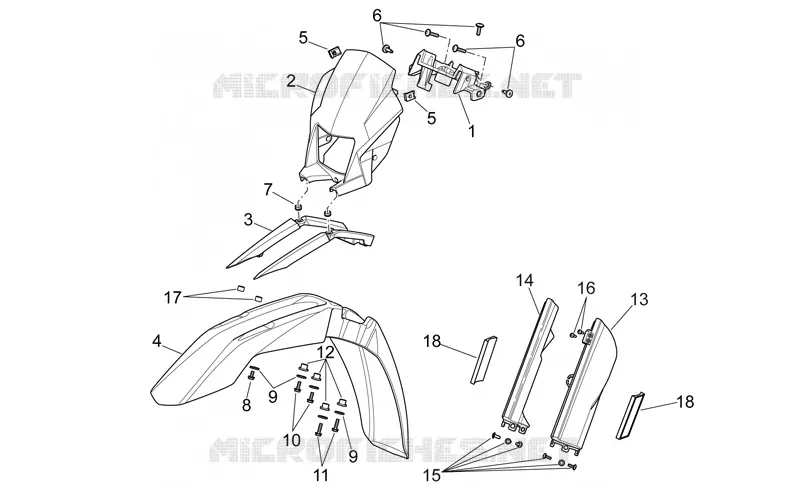

Front body I
6
Parts Diagram
Parts Catalog
Cylinder head
by
Fuel vapour recover system
Front body I
1
2
3
4
5
5
6
6
7
8
9
9
10
11
12
13
14
15
16
17
18
18
1
Socket support
855104
£32,06 Unit Price incl. VAT
1
Socket support
AP9100517
£29,04 Unit Price incl. VAT
2
Windshield
AP8184517
Not Available
2
Windshield
AP8184489
Not Available
2
Windshield
85813800XN4
Not Available
2
Windshield
85813900XN4
Not Available
3
Tie rod
858388
Not Available
4
Front mudguard, red
AP8156343
Not Available
5
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
6
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
7
Rubber spacer
AP8120405
£5,52 Unit Price incl. VAT
8
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
9
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
10
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
11
Screw w/ flange
AP8152283
£2,17 Unit Price incl. VAT
12
T bush 20x0,5x3,5
AP9100501
Not Available
13
LH sleeve guard, black
AP9100440
Not Available
14
RH sleeve guard, black
AP9100441
Not Available
15
Screw complete M6x1
AP9100548
Not Available
16
Screw
AP8150246
£4,50 Unit Price incl. VAT
17
Bush d.10-h.3,5
AP9100053
£1,76 Unit Price incl. VAT
18
Reflector, amber
GU05781630
£18,60 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
