1
Engine displacement
550
2
Model
RXV-SXV
3
Year
2008
4
Trim
RXV-SXV
5
Parts Catalog

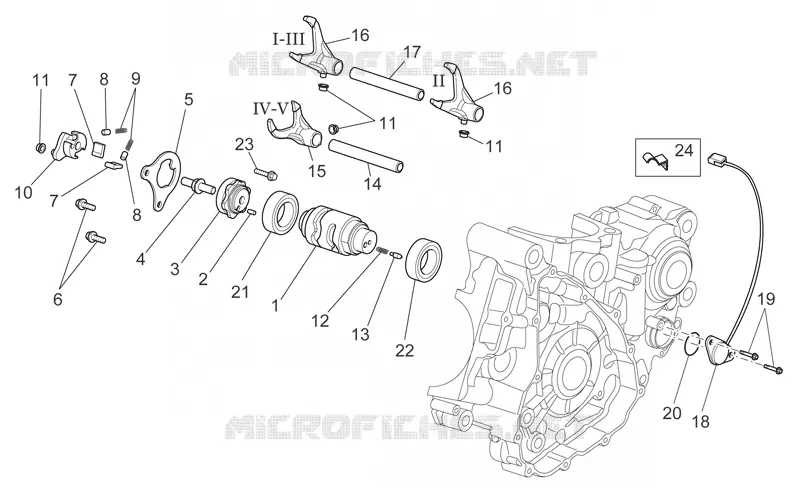

Gear box selector II
6
Parts Diagram
Parts Catalog
Lubrication
by
Foot rests
Gear box selector II
1
2
3
4
5
6
7
8
8
9
10
11
11
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
1
Shift cam cpl.
AP9150004
£184,76 Unit Price incl. VAT
2
Roller D4
AP9150375
£21,42 Unit Price incl. VAT
3
Selector drum
AP9150067
£95,02 Unit Price incl. VAT
4
Threaded pin M8x1,25
AP9150043
Not Available
5
Selector lock plate
AP9150073
£22,33 Unit Price incl. VAT
6
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
7
Lever
AP9150069
£8,29 Unit Price incl. VAT
8
Spring pillar
AP9150070
£16,34 Unit Price incl. VAT
9
Spring
AP9150064
£13,60 Unit Price incl. VAT
10
Shift cam plate
AP9150068
£48,25 Unit Price incl. VAT
11
Bushing D6x8x5
AP9150060
£15,16 Unit Price incl. VAT
12
Spring
AP9150072
Not Available
13
Spring pillar
AP9150003
£8,28 Unit Price incl. VAT
14
Fork shaft L72,5
AP9150062
£133,40 Unit Price incl. VAT
15
Fork 4a-5a
AP9150093
Not Available
16
Fork 1a-3a
AP9150091
£110,94 Unit Price incl. VAT
17
Fork shaft L93
AP9150061
£31,78 Unit Price incl. VAT
18
Gearbox sensor
AP9150184
Not Available
19
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
20
O-ring D23,52x1,78
AP9150479
£3,26 Unit Price incl. VAT
21
Ball bearing D25x42x9
AP9150365
£38,74 Unit Price incl. VAT
22
Ball bearing D25x37x7
AP9150364
Not Available
23
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
24
Fairlead
AP9150462
£10,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
