1
Engine displacement
550
2
Model
RXV-SXV
3
Year
2008
4
Trim
RXV-SXV
5
Parts Catalog
Oil tank
6

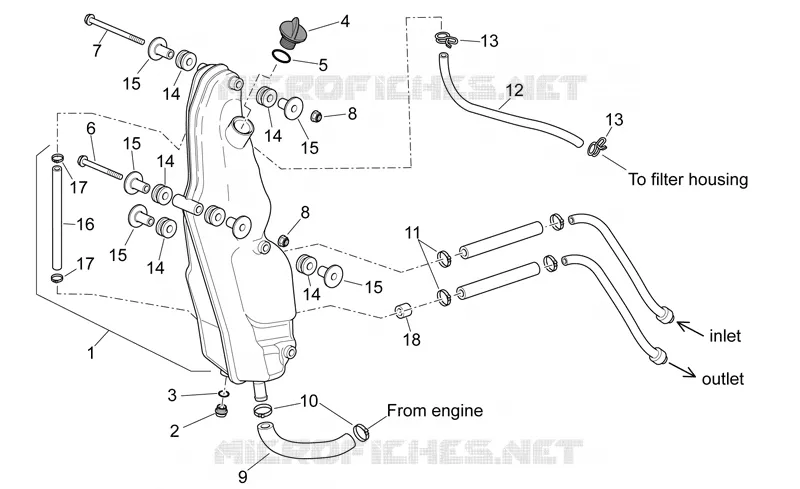

Parts Diagram
Parts Catalog
Rear lights
by
Oil tank
1
2
3
4
5
6
7
8
8
9
10
11
12
13
13
14
14
14
14
14
15
15
15
15
15
16
17
17
18
1
Oil tank
AP9100343
Not Available
2
Oil unload plug
AP9150174
£7,85 Unit Price incl. VAT
3
Seal washer D12x18x1,5
AP9150349
Not Available
4
Oil plug M20x1,5
AP9150410
£10,34 Unit Price incl. VAT
5
Gasket ring
AP8121638
Not Available
6
Screw w/ flange M6x70
AP9100638
Not Available
7
Screw w/ flange M6x1 L=95
AP9100661
£6,83 Unit Price incl. VAT
8
Self-locking nut M6x1
AP9100434
£6,32 Unit Price incl. VAT
9
pipe Blow-By
AP9100496
Not Available
10
Hose clip D16,5X6,6
AP8102903
£18,68 Unit Price incl. VAT
11
Hose clip D.15,5x6,6
AP8101586
£3,97 Unit Price incl. VAT
12
pipe 9x14
AP8120987
£24,38 Unit Price incl. VAT
13
Hose cock
AP8102525
£12,78 Unit Price incl. VAT
14
Rubber spacer *
AP8120223
£2,74 Unit Price incl. VAT
15
Bush D14-D9-d6.5-H12
AP9100950
Not Available
16
Oil level pipe
AP9100665
Not Available
17
Hose clip
AP9100951
£12,65 Unit Price incl. VAT
18
Rubber pipe 12,8x8,8 L=28
AP9100267
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
