1
Engine displacement
550
2
Model
RXV-SXV
3
Year
2008
4
Trim
RXV-SXV
5
Parts Catalog

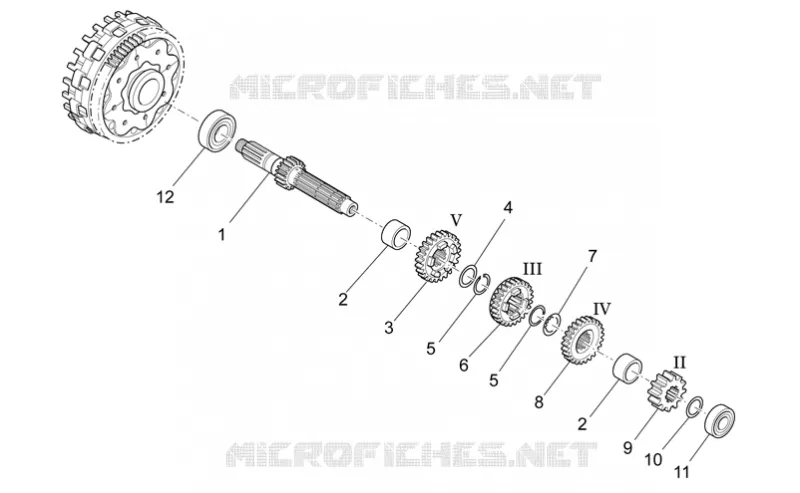

Primary gear shaft
6
Parts Diagram
Parts Catalog
Cooling system
by
Rear lights
Primary gear shaft
1
2
2
3
4
5
5
6
7
8
9
10
11
12
1
Primary gear shaft Z=13
AP9150270
Not Available
1
Primary gear shaft Z=12
AP9150256
Not Available
2
Bushing D25x28x9,9
AP9150216
£20,50 Unit Price incl. VAT
3
Gear 5a su prim.Z=21
AP9150269
£31,78 Unit Price incl. VAT
3
Gear 5a su prim.Z=21
AP9150255
£31,78 Unit Price incl. VAT
4
Plain washer D25,1x30,8x0,5
AP9150297
£2,23 Unit Price incl. VAT
5
Outside circlip D25
AP9150302
Not Available
6
Gear 3a su prim.Z=16
AP9150268
£110,76 Unit Price incl. VAT
6
Gear 3a su prim.Z=15
AP9150254
£169,31 Unit Price incl. VAT
7
Special washer D25,1x30,8x0,
AP9150267
Not Available
8
Gear 4a su prim.Z=20
AP9150266
£31,78 Unit Price incl. VAT
8
Gear 4a su prim.Z=19
AP9150253
£31,78 Unit Price incl. VAT
9
Gear 2a su prim.Z=15
AP9150265
£86,06 Unit Price incl. VAT
9
Gear 2a su prim.Z=13
AP9150252
£51,06 Unit Price incl. VAT
10
Washer D17,1x27,8x0,8
AP9150294
£2,33 Unit Price incl. VAT
11
Ball bearing D17x40x12
AP9150362
£18,78 Unit Price incl. VAT
12
Ball bearing D25x52x1
AP9150360
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
