Front wheel FOR RXV FROM 2011

Free shipping for all orders to United Kingdom over £150! See conditions.

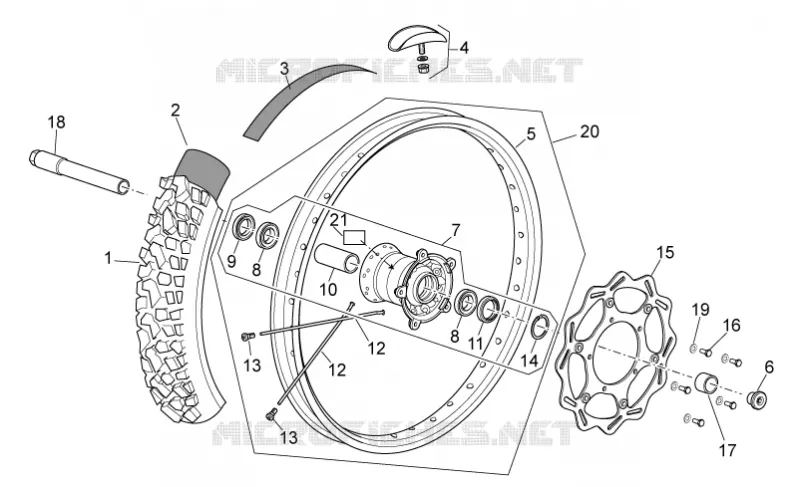

Front wheel

1

Front/rear tyre 90/90X21"

855687

Not Available

2

Inner tube 21"

855741

Not Available

3

Front wheel flap 21"

AP8109001

£16,79 Unit Price incl. VAT

4

Bracket

AP9100457

Not Available

5

Front wheel 1,6x21"

855586

Not Available

6

Cover M22

AP9100171

£18,18 Unit Price incl. VAT

7

Front hub

AP9100225

Not Available

8

Ball bearing 25x42x9

AP9100216

Not Available

9

Gasket ring 28x42x7

AP9100228

Not Available

10

Internal spacer L=69,7

AP9100226

£32,20 Unit Price incl. VAT

11

Gasket ring 32x42x7

AP9100227

Not Available

12

Spoke d.3,5-21"-l.233

AP9100224

£8,21 Unit Price incl. VAT

13

Nipple

AP9100057

£4,00 Unit Price incl. VAT

14

Circlip D.42

AP8121334

£1,76 Unit Price incl. VAT

15

Front brake disc d.270

855747

£90,61 Unit Price incl. VAT

16

Hex screw M6x16

855720

Not Available

17

Outside spacer L=26,3

AP9100229

£31,79 Unit Price incl. VAT

18

Front wheel spindle L=221,5

855203

Not Available

19

Spring washer 6,4x11x0,5*

AP8150429

Not Available

20

Front wheel 21"

855584

Not Available

21

Spacer

AP9100318

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
