1
Engine displacement
50
2
Model
RX
3
Year
2001
4
Trim
RX
5
Parts Catalog
Water cooler
6
Parts Diagram
Parts Catalog
Controls III
by
Air box
Water cooler
1
2
3
4
5
5
6
7
8
9
10
11
12
13
13
13
13
13
14
15
16
1
Water cooler
AP8201666
Not Available
2
Pump connection hose
AP8220405
£17,39 Unit Price incl. VAT
3
Tee union
AP8220410
£20,84 Unit Price incl. VAT
4
Silencer plate
AP8101397
£4,01 Unit Price incl. VAT
5
Silent-block *
AP8120275
£2,83 Unit Price incl. VAT
6
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
7
Rad cap w/ vent
AP8201463
Not Available
8
Tee union
AP8220415
Not Available
9
Spacer
AP8120253
£1,66 Unit Price incl. VAT
10
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
11
Water cooler-head tube
AP8220271
£29,75 Unit Price incl. VAT
12
Rubber fabric reinforced hose
AP8220450
£21,42 Unit Price incl. VAT
13
Hose clip D23,5x8*
AP8101927
£3,77 Unit Price incl. VAT
14
Rad cap no vent
AP8102888
Not Available
15
Hose clip D25x8,6
AP8101722
£7,85 Unit Price incl. VAT
16
Cooler-pump pipe
AP8220643
£31,56 Unit Price incl. VAT

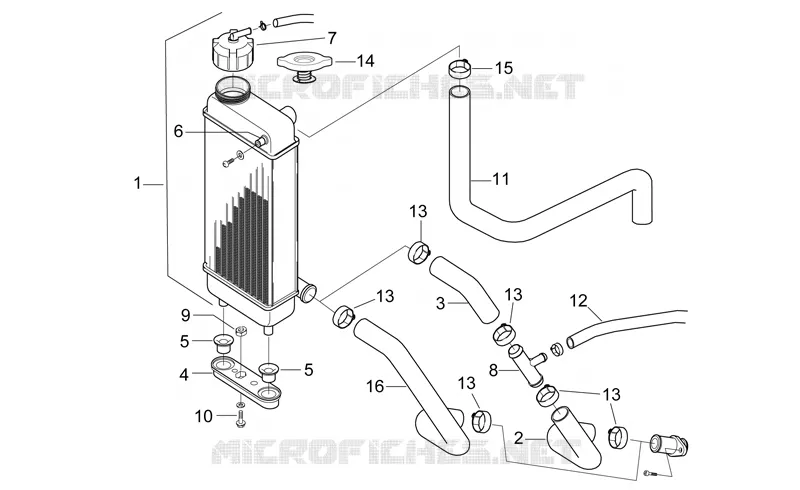

Find the detailed Water cooler APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
