Engine displacement
50
2
Model
RX
3
Year
2003
4
Trim
RX
5
Parts Catalog
Clutch
6
Parts Diagram
Parts Catalog
Gearbox driven shaft II
by
Clutch cover
Clutch
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Clutch - pair Z=20/71
AP8206310
Not Available
2
Spacer D13x30x4
AP8206267
Not Available
3
Aluminium clutch drum
AP8206256
£58,45 Unit Price incl. VAT
4
Washer D12
AP8206271
Not Available
5
Driven clutch disc
AP8206247
£11,14 Unit Price incl. VAT
6
Driving clutch disc
AP8206322
Not Available
7
Clutch pressure plate
AP8206248
Not Available
8
Nut M14x1,25x6
AP8502432
Not Available
9
Clutch spring
AP8206258
Not Available
10
Washer D5x15x2
AP8206272
Not Available
11
Screw
AP8206279
Not Available
12
Adjuster screw M14x1,25
AP8502533
Not Available
13
Nut M12x1,25x7
AP8206265
Not Available
14
Cover gasket
AP8206287
£13,08 Unit Price incl. VAT
15
Balance shaft driven gear Z=34
AP8206253
Not Available
16
Blue steel washer D12,3x22
AP8206344
Not Available
17
Nut M12x1 H=5
AP8206266
Not Available
18
Flanged nut M12x1,25
AP8206343
Not Available
19
Balance shaft driv. Gear Z=34
AP8206308
Not Available
20
Balance shaft gear cpl.
AP8125913
Not Available

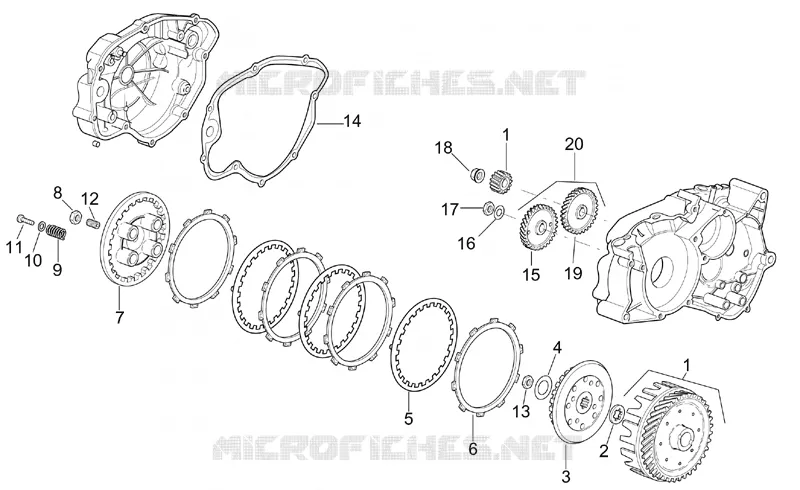

Find the detailed Clutch APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
