1
Engine displacement
50
2
Model
GULLIVER
3
Year
1997
4
Trim
Gulliver Air
5
Parts Catalog
Carburettor - oil pump assy.
6

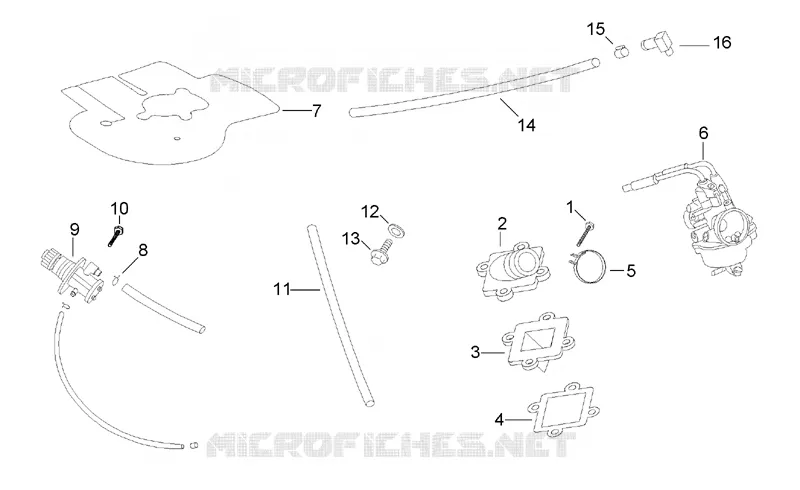

Parts Diagram
Parts Catalog
Clutch
by
Variator - Transmission final drive
Carburettor - oil pump assy.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Screw M6x20
AP8502564
£0,96 Unit Price incl. VAT
2
Intake manifold
AP8206466
Not Available
2
Intake manifold D12
AP8206565
Not Available
3
Reed valve assy
AP8206557
Not Available
4
Fuel intake valve gasket
AP8206486
Not Available
5
Hose collar
AP8206181
Not Available
6
Carburettor phbn 12-Gs
AP8206706
Not Available
6
Carburettor phbn 12-Gs
AP8206745
Not Available
6
Carburettor phbn 12-Ds
AP8222472
Not Available
6
Carburettor phbn 12-Gs
AP8206726
Not Available
6
Carburettor phbn 12-Gs
AP8206682
Not Available
6
Carburettor phbn 12-Ds
AP8206661
Not Available
6
Carburettor phbn 12-Gs
AP8206660
Not Available
7
Carburettor guard
AP8206473
Not Available
8
Hose clamp
AP8206180
Not Available
9
Oil pump assy.
AP8206467
Not Available
9
Oil pump assy.
AP8206747
Not Available
10
Screw
AP8508887
Not Available
11
Union+Breather pipe 10x14x210
AP8206131
Not Available
12
Gasket 8,2x15x1,2
AP8206488
Not Available
13
Screw w/ flange M8x15
AP8206203
Not Available
14
pipe 650 mm
AP8222474
Not Available
15
Vacuum pipe Brass union
AP8220479
Not Available
16
Vacuum pipe union
AP8222475
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
