Parts Catalog
Front body I
6
Parts Diagram
Parts Catalog
Rear shock absorber
by
Front body II
Front body I
1
2
2
3
4
5
6
7
7
8
9
10
10
10
11
12
13
13
14
1
Front mudguard, red
AP8226840
Not Available
1
Front mudguard, white
AP8226839
Not Available
1
Front mudguard, white
AP8226789
Not Available
1
Front mudguard, red
AP8226769
Not Available
2
Curved spring washer *
AP8150182
£2,48 Unit Price incl. VAT
3
RH sleeve guard, black
AP8226832
Not Available
3
RH sleeve guard, black
AP8258093
Not Available
4
LH sleeve guard, black
AP8226833
Not Available
4
LH sleeve guard, black
AP8258094
£51,47 Unit Price incl. VAT
5
Hex socket screw M5x12
AP8152267
£2,36 Unit Price incl. VAT
6
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
7
Reflector, orange
AP8212060
Not Available
8
Bush
AP8221232
Not Available
9
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
10
Washer 6,6x18*
AP8150179
£1,27 Unit Price incl. VAT
11
Washer 6,4x12,5*
AP8150178
£1,27 Unit Price incl. VAT
12
Hex socket screw
AP8152108
£1,88 Unit Price incl. VAT
13
Reflector, amber
AP8224023
£10,72 Unit Price incl. VAT
14
Nut M4
AP8150204
£1,88 Unit Price incl. VAT

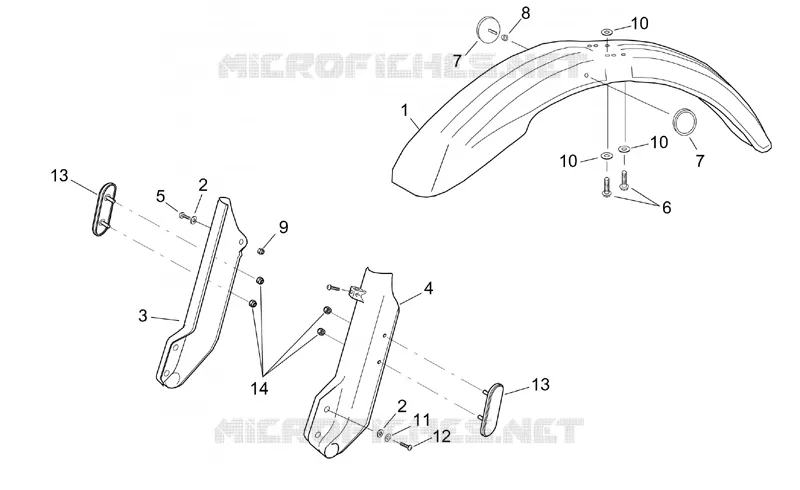

Find the detailed Front body I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
