1
Engine displacement
50
2
Model
RX
3
Year
2003
4
Trim
RX
5
Parts Catalog
Left crankcase
6
Parts Diagram
Parts Catalog
Engine
by
Right crankcase
Left crankcase
1
2
3
4
5
6
7
8
9
9
10
11
12
1
Clutch lever cpl.
AP8206257
Not Available
2
Clutch lever return spring
AP8206259
Not Available
3
Washer D14x26x0,5
AP8206875
Not Available
4
Oil seal D15x24x5
AP8509179
Not Available
5
Oil breather union
AP8206876
Not Available
6
Neutral indicator switch+seal
AP8206296
Not Available
7
Gasket 9,9x16x1
AP8206288
Not Available
8
Screw M6x40
AP8206276
Not Available
9
Crankcase pin D11,5x12
AP8206295
Not Available
10
Trans.case w.o.elec.start-pair
AP8206987
Not Available
10
Trans.case w.o.elec.start-pair
AP8206629
Not Available
11
Oil breather pipe D3x5 L=450
AP8206874
Not Available
12
Cable-guide
AP8206137
Not Available

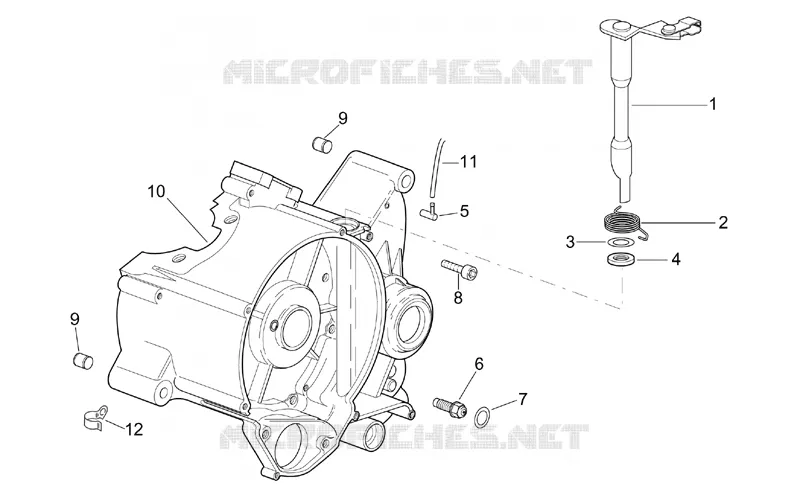

Find the detailed Left crankcase APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
