Engine displacement
50
2
Model
RX
3
Year
2003
4
Trim
RX
5
Parts Catalog
Rear master cylinder
6
Parts Diagram
Parts Catalog
Rear wheel
by
Rear brake caliper
Rear master cylinder
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
1
Oil tank
AP8213086
Not Available
2
Stop switch
AP8124479
£36,77 Unit Price incl. VAT
3
Rear master cylinder
AP8213117
Not Available
4
Rear master cyl.rod
AP8113248
£3,83 Unit Price incl. VAT
5
Fork
AP8113081
£16,07 Unit Price incl. VAT
6
Gear selector fork clips
AP8113082
£18,83 Unit Price incl. VAT
7
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
8
Coil torsion spring *
AP8221100
£4,51 Unit Price incl. VAT
9
Rear brake lever
AP8232901
Not Available
10
Brake master cyl.protection
AP8230575
Not Available
11
Screw w/ flange
AP8152291
£1,94 Unit Price incl. VAT
12
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
13
Spacer
AP8221234
£4,08 Unit Price incl. VAT
14
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
15
Rear brake hose
AP8213233
£81,53 Unit Price incl. VAT
16
pipe 5x9
AP8220402
£28,99 Unit Price incl. VAT
17
Joint
AP8113157
Not Available
18
Spacer
AP8120253
£1,66 Unit Price incl. VAT

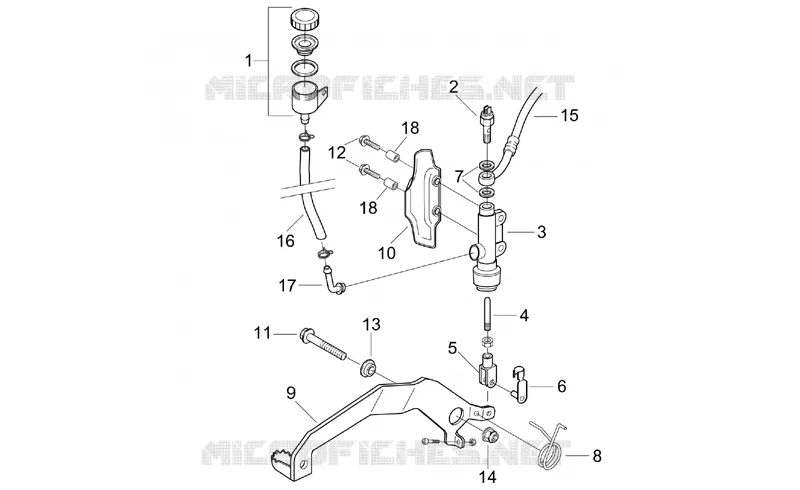

Find the detailed Rear master cylinder APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
