1
Engine displacement
125
2
Model
RX
3
Year
1997
4
Trim
RX (engine 122cc)
5
Parts Catalog

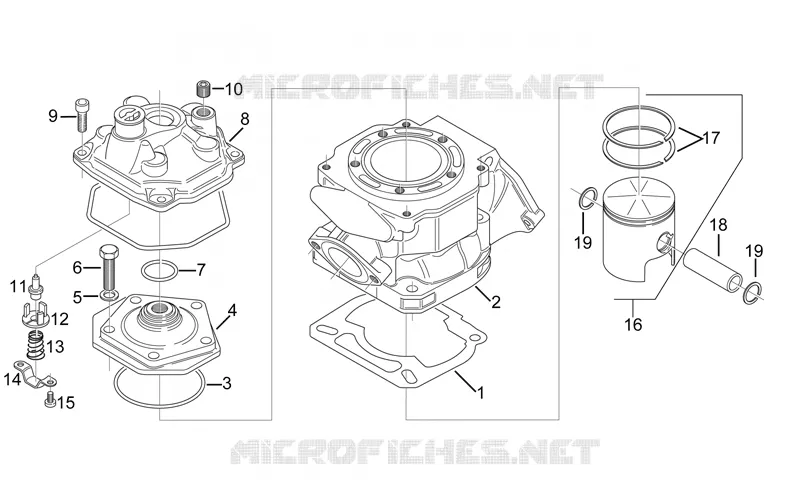

Cylinder - Head - Piston
6
Parts Diagram
Parts Catalog
Crankshaft - Balance shaft
by
Carburettor flange
Cylinder - Head - Piston
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
1
Gasket 0,5
AP0650096
Not Available
1
Gasket 0,3
AP0650095
Not Available
1
Gasket 0,8
AP0650097
Not Available
2
Cylinder 9 holes
AP0223618
Not Available
3
O-ring 64x2
AP0250160
£10,72 Unit Price incl. VAT
4
Cylinder head
AP0223384
Not Available
5
Break washer A8
AP0945752
Not Available
6
Round screw M8x30
AP0940481
Not Available
7
O-ring 23,3x2,4
AP0430782
£5,32 Unit Price incl. VAT
8
Cylinder head cover
AP0613100
Not Available
9
Hex socket screw M6x20
AP0241930
Not Available
10
Plug screw 1/8-27NPT
AP0240480
Not Available
11
Thermostat 70°
AP0222122
Not Available
12
Thermostat holder
AP0222175
£18,05 Unit Price incl. VAT
13
Spring
AP0239950
Not Available
14
Thermostat bow
AP0222202
Not Available
15
Special cap screw M4x8
AP0240195
Not Available
16
Piston assy 54,00 mm
AP0294755
Not Available
16
Piston assy 53,99 mm
AP0294748
Not Available
16
Piston assy 53,98 mm
AP0294747
Not Available
17
Ring d54
AP0215670
Not Available
18
Piston pin
AP0216139
Not Available
19
Stop ring D15
AP0945635
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
